5-in-1 Dimmable LED Drivers
FAHOLD manufactures 5-in-1 dimmable LED drivers and power supplies for OEM architectural, commercial and LED strip lighting. Available in 12V and 24V constant-voltage configurations, our 100–277Vac driver range supports multiple lighting-control requirements, including compatible TRIAC, ELV, MLV, 0–10V, PWM and potentiometer control options.
Choose between the L2-A enclosed Class 2 LED driver series with an IP65 enclosure and the L2-F IP67 waterproof LED power supply series for applications requiring greater ingress protection.
Compare models by voltage, wattage, output channels and dimming requirements. FAHOLD provides technical datasheets, model-matching support, samples and OEM/ODM quotations for lighting manufacturers and project buyers.
Page 1 of 3
Compare 5-in-1 Dimmable LED Drivers for Your Lighting Project
A 5-in-1 dimmable LED driver can simplify product selection for lighting manufacturers and contractors working with different control systems. However, selecting a compatible power supply requires more than checking whether a driver is described as "5-in-1."
The AC input, LED load voltage, dimmer model, output-channel capacity and installation environment must all match the project specification.
Select the Required Dimming Interface
| Control Requirement | Typical Application | What to Verify |
|---|---|---|
| 0–10V Dimming | Commercial linear and architectural lighting | Controller type, dimming range and control wiring |
| TRIAC / Forward Phase | Compatible wall-dimmer installations | Exact dimmer model, input-voltage conditions and minimum load |
| ELV / Reverse Phase | Architectural lighting with electronic phase-cut dimmers | Driver and dimmer compatibility |
| MLV Dimming | Installations using compatible magnetic low-voltage controls | Supported configuration and control characteristics |
| PWM / Potentiometer | Selected fixture and electronic lighting controls | Input signal requirements and controller compatibility |
FAHOLD L2-A and L2-F platforms offer multiple dimming configurations. The exact supported interfaces and operating conditions must be confirmed for the selected model.
L2-A vs. L2-F: Which 5-in-1 Driver Platform Should You Select?
Both product families provide 100–277Vac input models and 12V or 24V constant-voltage outputs, but they serve different installation requirements.
| Feature | L2-A Enclosed Series | L2-F Waterproof Series |
|---|---|---|
| AC Input | 100–277Vac | 100–277Vac |
| DC Output | 12V / 24V | 12V / 24V |
| Dimming | Multi-mode configurations | Multi-mode configurations |
| Enclosure | IP65 enclosed platform | IP67 waterproof platform |
| Primary Selection Factor | Integrated enclosure and wiring requirements | Ingress protection and installation environment |

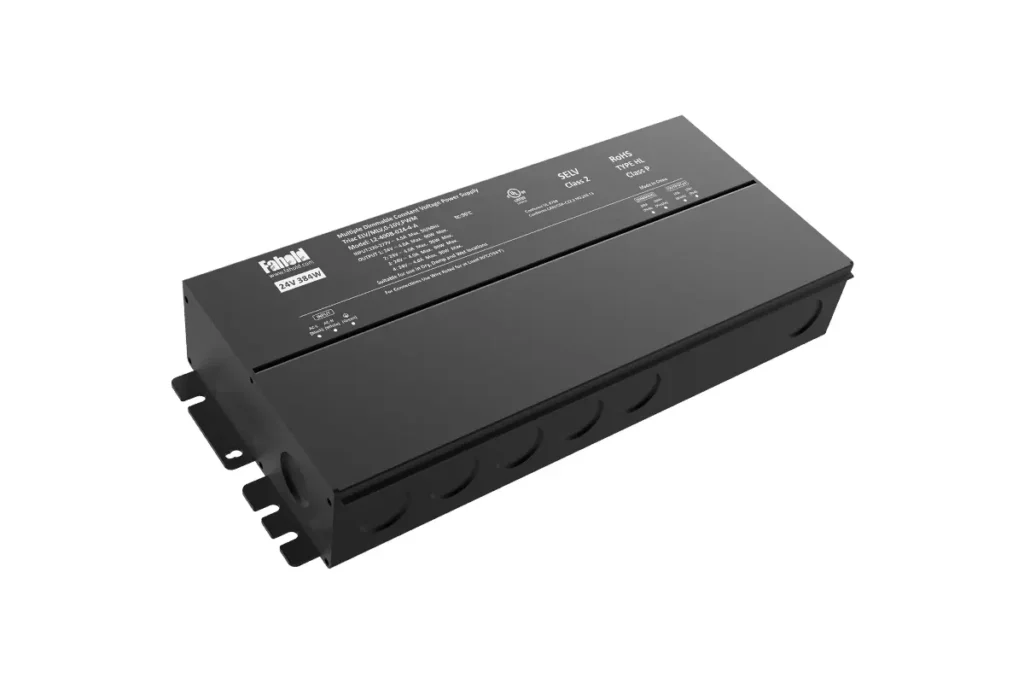

For commercial linear fixtures, LED strips and architectural projects requiring integrated wiring provisions, explore the L2-A enclosed dimmable drivers.

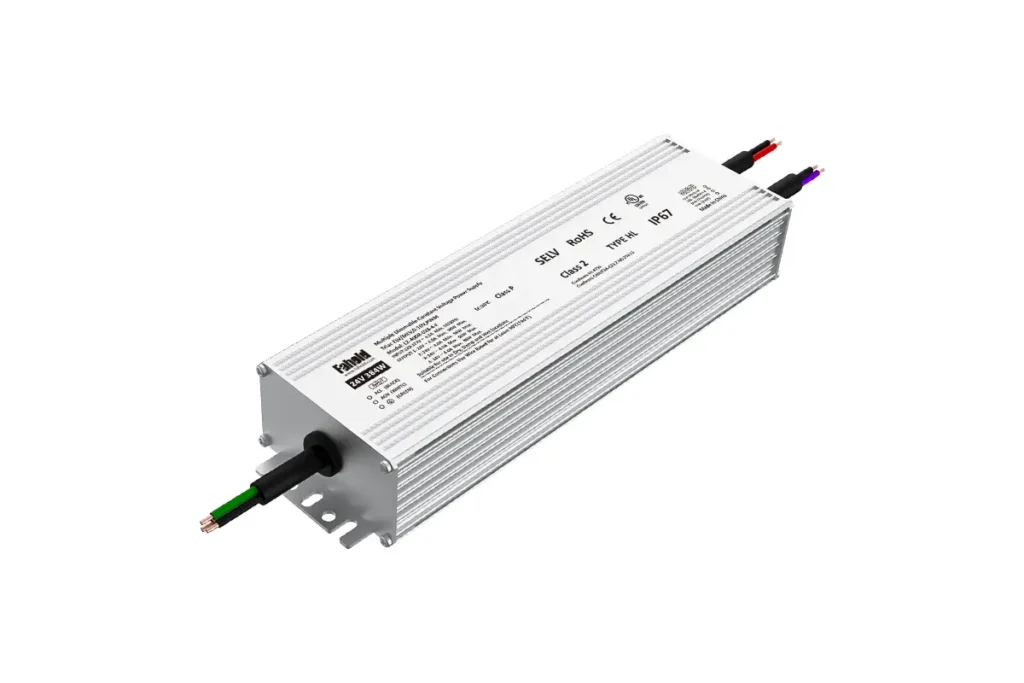

For applications requiring a waterproof power-supply enclosure, compare the L2-F IP67 dimmable LED power supplies.
The final installation approval must also consider cable connections, ambient temperature, mounting and relevant safety requirements.
Recommended 12V and 24V Dimmable Driver Configurations
FAHOLD offers single-output and multi-channel LED power supplies for different fixture loads. Choose the output voltage first, then evaluate the required current and circuit configuration.
| Recommended Model | Rated Output | Configuration |
|---|---|---|
| L2-060X-012A | 12V / 60W | Single output |
| L2-100X-024A | 24V / 96W | Single output, 4A |
| L2-200X-024-2A | 24V / 192W | Two outputs, 4A each |
| L2-300X-024-3A | 24V / 288W | Three outputs, 4A each |
Engineering example: For a commercial lighting system with two separate 24V LED loads rated at 80W each, the L2-200X-024-2A is a possible starting point. Its two 96W output channels can be evaluated individually against the two loads, subject to the complete driver rating, environmental conditions and dimmer compatibility.
A higher total wattage does not mean the full driver capacity is available from any single Class 2 output channel.
Verify Dimming Performance Before Ordering
For lighting projects requiring smooth dimming, stable low-light operation or camera-sensitive illumination, FAHOLD recommends confirming compatibility with the actual LED load and controller.
Before approving a model, verify:
- Required AC input voltage and dimming method.
- Compatible controller or wall-dimmer model.
- Actual connected LED wattage and current per output.
- Required enclosure protection and operating temperature.
- Applicable Class 2 and North American safety documentation.
- Low-end dimming, shutoff behavior and flicker performance under the intended operating conditions.
A 100–277Vac input rating does not automatically guarantee that every dimming method is supported at every input voltage.
5-in-1 Dimmable LED Driver Manufacturer for OEM Projects
FAHOLD manufactures dimmable constant-voltage LED drivers for OEM lighting manufacturers, commercial lighting suppliers and project contractors.
We support standard-model selection, compatible dimming configurations, sample evaluation and the assessment of project-specific requirements such as cable assemblies, connectors, enclosure options, labels and technical documentation.
Request a Model Recommendation or OEM Quotation
Provide your AC input, 12V/24V LED load, required wattage, dimming controller, installation environment and expected order quantity. FAHOLD can help shortlist appropriate L2-A or L2-F models and confirm the final electrical configuration before procurement.
Frequently Asked Questions
1. Can one 5-in-1 LED driver work with every dimming system?
Not automatically. A 5-in-1 LED driver supports multiple control methods according to its design and configuration, but compatibility with a specific TRIAC, ELV, MLV, 0–10V or PWM controller must still be verified. Provide the controller model when requesting a recommendation.
2. Can a 100–277V LED driver operate with 277V commercial lighting controls?
A driver rated for 100–277Vac can accept that AC input range, but the supported dimming interface and its operating voltage conditions must be checked separately. Do not assume that all phase-cut dimming configurations are suitable for 277Vac operation.
3. Should I choose an IP65 or IP67 dimmable LED power supply?
Select the enclosure based on the actual installation environment. FAHOLD's L2-A Series provides an enclosed IP65 platform, while the L2-F Series uses an IP67 waterproof design. Also verify wiring connections, installation temperature and applicable approval requirements.
4. Can a 192W Class 2 LED driver supply one 160W LED load?
Not necessarily. For example, the FAHOLD L2-200X-024-2A provides two 24V / 4A outputs rated at 96W each. The full 192W rating cannot be assumed available from one output. The load must be distributed within the individual channel ratings.
5. What information is required to confirm dimmer compatibility?
Provide the AC supply voltage, LED load voltage and wattage, exact dimmer or controller model, required dimming range, and installation environment. These details help FAHOLD identify a suitable driver configuration and determine whether additional compatibility testing is needed.
6. Does FAHOLD offer OEM customization, samples and bulk quotations?
Yes. FAHOLD supports OEM project evaluation, sample orders and volume quotations. Customers can request compatible standard models or submit specific electrical, wiring, enclosure and labeling requirements for assessment. Feasibility, order quantity and lead time are confirmed for each project.
