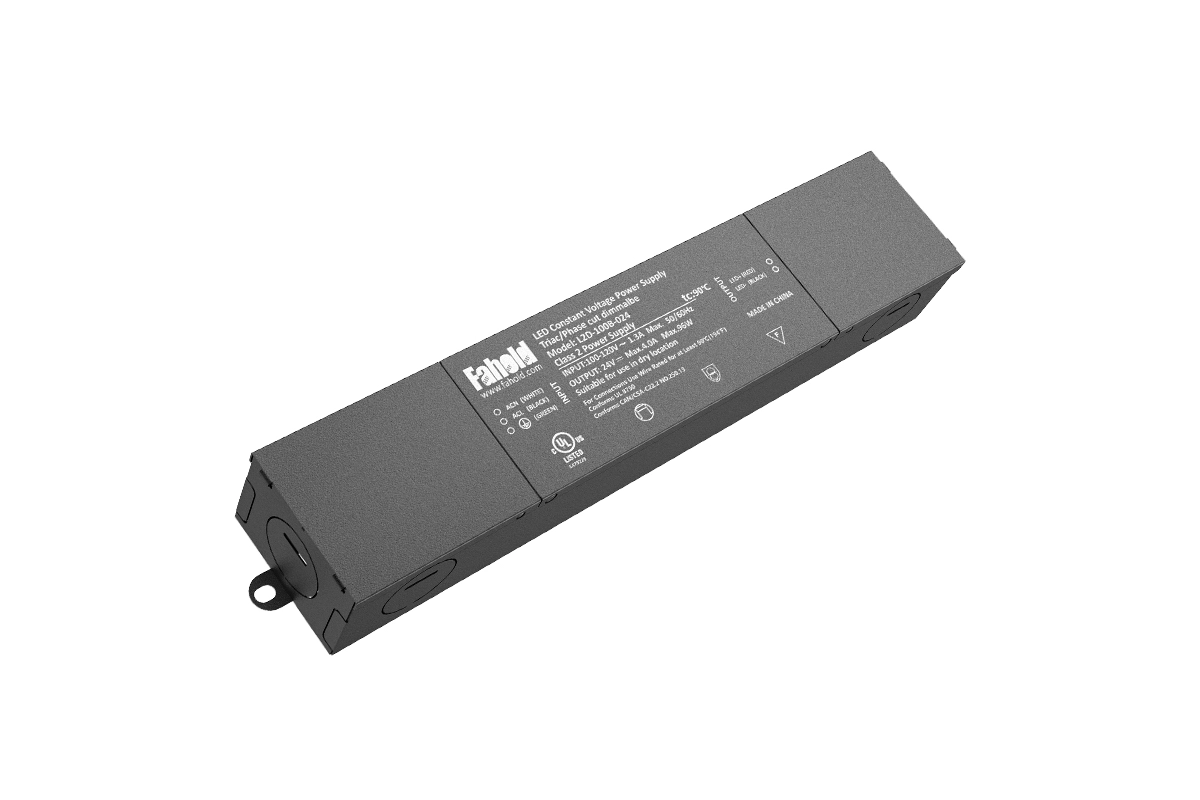

L2D-060X-012 60W 12V Class 2 Constant Voltage LED Driver

60W 12V Class 2 constant voltage LED driver for North American architectural, landscape and outdoor lighting, with non-dimmable and TRIAC/ELV/MLV dimming options.

Rated Power 60W

Output Voltage 12Vdc

Input Voltage 100–120Vac(90–132Vac extreme)

Output Current 5A

Control Type TRIAC / ELV / MLV

Warranty 5 Years

MOQ 500 pcs

Sample Order From 10 pcs

Lead Time Sample: ~1 Week · Bulk: 3–4 Weeks

Product Overview

L2D-060X-012 is a 60W 12V Class 2 constant voltage LED driver designed for the North American market. It operates from 100–120Vac and delivers 12Vdc at up to 5A.

Type N non-dimmable or Type B TRIAC/ELV/MLV dimming
0–100% dimming range for Type B; LED start at 1% possible
Integrated LED driver and junction box
Power factor ≥0.98 and typical efficiency 85%
Suitable for dry and damp locations
5-year warranty

Applications: LED Advertising Light Box / LED Landscape Lighting / LED Outdoor Lighting / LED Floodlight / LED Greenhouse Lighting / LED Strip Light

Technical Specifications

Parameter	Specification
Rated Power	60W
Input Voltage	100–120Vac (90–132Vac extreme)
Input Frequency	50/60Hz
Power Factor	≥0.98 @ 120Vac, full load
Efficiency	85%
Output Voltage	12Vdc
Output Current	5A
Dimming	Type N: Non-dimmable; Type B: TRIAC / ELV / MLV, 0–100%
Dimensions	236 × 45 × 32.5 mm
Protection	OCP 105–140%; SCP: Hiccup, auto recovery; OVP <35V; OTP: Hiccup, auto recovery
Certifications	cULus / UL8750 / CE / FCC Part 15B Class B / RCM / Class 2 / SELV
Warranty	5 Years

Available Models

Model No.	Rated Power	Input Voltage	Output Voltage	Output Current	Efficiency (Typ.)
L2D-060X-012	60W	100–120Vac (90–132Vac extreme)	12Vdc	5A	85%
L2D-060X-024	60W	100–120Vac (90–132Vac extreme)	24Vdc	2.5A	87%
L2D-100X-024	96W	100–120Vac (90–132Vac extreme)	24Vdc	4A	88%
