IP67 Waterproof 5-in-1 Dimmable LED Power Supplies
FAHOLD L2-F IP67 waterproof dimmable LED power supplies are designed for architectural, commercial and low-voltage lighting applications requiring enhanced protection against dust and moisture. The series combines 100–277Vac input, 12V or 24V constant-voltage output and 5-in-1 dimming configurations for compatible LED strips, linear fixtures and architectural lighting systems.
Available models cover 60W–400W power classes, with single-output and multi-channel options. Depending on the selected configuration, supported control methods include TRIAC, ELV, MLV, 0–10V, PWM and potentiometer control.
Compare L2-F models below by output voltage, power class, output-channel requirements and installation conditions. FAHOLD provides technical documentation, product matching, samples and OEM/ODM quotations for lighting manufacturers, distributors and commercial project buyers.
For projects requiring an enclosed driver with an integrated junction box, explore our L2-A dimmable LED driver series.
Page 1 of 2
IP67 Waterproof Dimmable LED Power Supplies for Architectural Lighting
FAHOLD L2-F waterproof LED power supplies are developed for constant-voltage lighting installations requiring both dimming capability and a protected driver enclosure.
The series supports 100–277Vac input and includes 12V and 24V models for compatible LED strips, linear lighting, decorative fixtures and architectural lighting applications.
Unlike a standard indoor power supply, selecting an IP67 driver involves evaluating not only voltage and wattage but also enclosure protection, cable connections, installation temperature and the complete lighting system.
Choose a 12V or 24V IP67 LED Power Supply
The output voltage must match the rated voltage of the connected LED load.
| Configuration | Available Power Classes | Typical Applications |
|---|---|---|
| 12V Waterproof LED Power Supply | 60W, 120W, 180W, 240W, 300W | Low-voltage decorative lighting, LED strips and displays |
| 24V Waterproof LED Power Supply | 60W, 100W, 200W, 300W, 400W | Architectural linear lighting, commercial LED strips and distributed lighting systems |
These are product-family power classes. The actual rated output current, available wattage and circuit limits must be verified for each model.
For 24V installations, FAHOLD offers the following model options:
- L2-60B-024F — 60W 24V Waterproof Driver
- L2-100B-024F — 100W-Class 24V Waterproof Driver

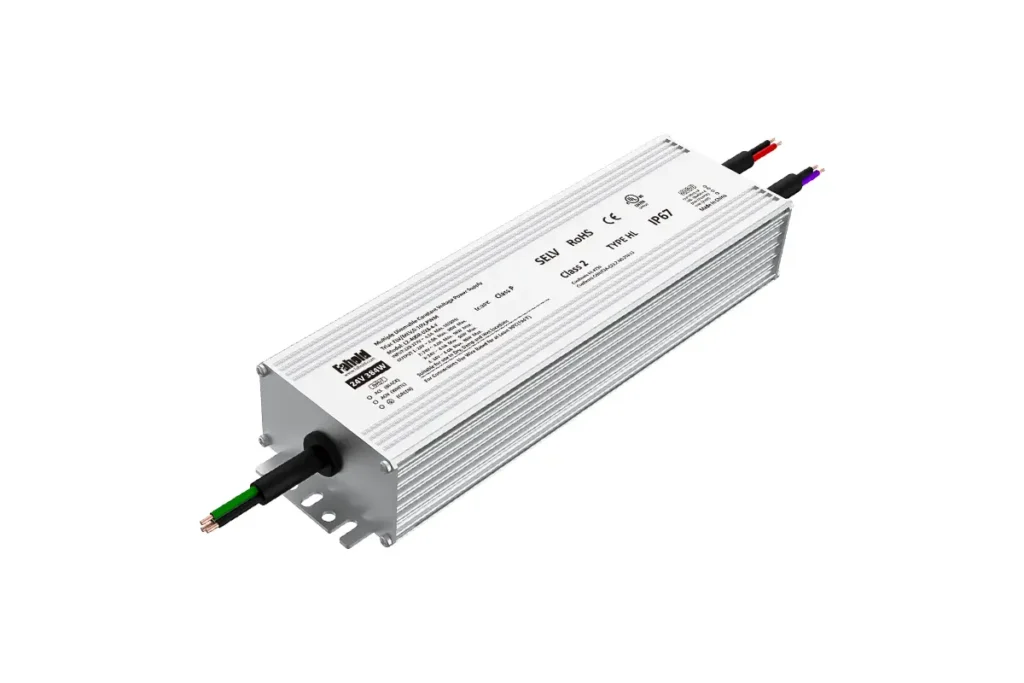

- L2-200B-024-2F — 200W-Class 24V Multi-Channel Driver
- L2-300B-024-3F — 300W-Class 24V Multi-Channel Driver
- L2-400B-024-4F — 400W-Class 24V Multi-Channel Driver
Where to Use L2-F IP67 Dimmable LED Drivers
Outdoor Architectural Accent Lighting
Architectural accent lighting installed in moisture-prone environments may require an LED driver with increased ingress protection.
The L2-F platform provides an IP67 enclosure for projects using compatible 12V or 24V constant-voltage LED loads.
The complete installation must also account for waterproof connectors, cable joints, mounting position and applicable safety requirements.
Commercial Linear and Cove Lighting
Commercial linear lighting projects may use 24V LED strips with centralized dimming control.
L2-F is suitable for consideration where the power-supply location requires IP67 protection. Choose the output configuration according to the number of lighting branches and the load on each branch.
For protected installations where an integrated junction-box design is preferred, the L2-A enclosed LED driver series may be a more appropriate platform.
Hospitality, Display and Decorative Lighting
Hotels, restaurants, displays and decorative lighting installations may require stable low-voltage power together with dimming compatibility.
The selected driver should match the actual LED load, control interface, available installation space and environmental conditions. An IP67 enclosure should be selected when justified by the power supply's installation environment rather than by the application category alone.
100–277V Input and Multi-Mode Dimming Compatibility
L2-F models use a 100–277Vac input platform and offer compatible multi-mode dimming configurations.
Depending on the selected version, available control interfaces include TRIAC, ELV, MLV, 0–10V, PWM and potentiometer control.
The required dimming method should be confirmed before purchasing. In particular, a 100–277Vac input rating does not automatically establish that every phase-cut control method can operate at every input voltage.
For lighting projects with strict low-end dimming or flicker requirements, compatibility should be evaluated using the intended LED load and controller.
For more information about different control platforms, explore FAHOLD 5-in-1 Dimmable LED Drivers.
Class 2 Output and Multi-Channel Selection
Some L2-F products use multiple output channels for higher-power lighting systems.
When a project requires Class 2 circuits, the engineer should verify the certification and electrical limits of each output separately.
For example, consider a commercial project requiring two independent 24V LED lighting branches. A multi-channel L2-F driver may be a possible starting point, but both branches must fall within their respective output ratings.
Before approving a high-power model, confirm:
- Actual continuous output wattage.
- Maximum output current per channel.
- Required thermal and installation derating.
- Class 2 certification for the selected configuration.
- Compatible dimming controller and operating voltage.
A model's nominal power class must not be used as a substitute for its verified electrical rating.
IP67 Protection, Installation and North American Compliance
The IP67 rating describes the protection of the driver enclosure against dust and water ingress under specified test conditions.
It does not automatically mean that the complete lighting installation is waterproof or that the product is approved for every outdoor or wet-location application.
Project approval should include the relevant safety listing, temperature limits, wiring method, cable connections, mounting requirements and junction-box configuration.
FAHOLD also provides an optional junction-box solution for applicable L2-F projects. The specific configuration and its installation documentation should be confirmed during technical review.
For detailed specifications and available configurations, refer to the L2-F Waterproof LED Power Supply Technical Overview.
OEM IP67 LED Power Supply Solutions from FAHOLD
FAHOLD supports OEM lighting manufacturers, lighting brands, commercial project suppliers and distributors with waterproof LED power supply selection.
Our team can assist with standard-model matching, project-specific dimming requirements, documentation, sample evaluation and inquiries involving cable assemblies, connectors, labels and installation accessories.
Request an L2-F Waterproof LED Power Supply Recommendation
Send FAHOLD your AC input voltage, 12V or 24V LED load, connected wattage, number of output circuits, control system, installation environment and estimated order quantity.
Our team can recommend an appropriate L2-F model for further technical verification and provide project-specific quotation information.
Frequently Asked Questions
1. What is the difference between an IP67 LED driver and a standard enclosed LED driver?
An IP67 LED driver has an enclosure tested for a specified level of dust and water ingress protection. FAHOLD L2-F uses an IP67 waterproof enclosure, while L2-A uses an IP65 enclosed design with integrated junction-box construction. The final choice depends on the installation environment and wiring requirements.
2. Can L2-F waterproof LED power supplies operate on 277V AC?
L2-F models are designed for a 100–277Vac input range, including commonly used 277V commercial lighting supplies. The selected dimming interface and installation requirements must be verified separately.
3. Are L2-F drivers available for 12V and 24V LED strips?
Yes. FAHOLD offers L2-F constant-voltage models for both 12V and 24V LED lighting systems. The driver output voltage must match the connected LED load, and each output must remain within its rated current and power limits.
4. Does an IP67 rating mean the LED power supply can be installed anywhere outdoors?
No. IP67 describes enclosure ingress protection under specified test conditions. Outdoor installation also requires evaluation of temperature, mounting conditions, electrical connections, applicable safety listings and the complete lighting assembly.
5. Can an L2-F waterproof LED driver support 0–10V or TRIAC dimming?
L2-F offers multi-mode dimming configurations that may support 0–10V, TRIAC, ELV, MLV, PWM and potentiometer control. Compatibility depends on the selected configuration, input conditions and actual controller model. These details should be checked before project approval.
6. Can FAHOLD supply OEM waterproof LED drivers and samples?
FAHOLD supports standard-model selection, sample evaluation and OEM/ODM project inquiries. Customers can provide electrical specifications, required dimming control, enclosure and connector requirements, certification targets and estimated order quantity to request technical support and a quotation.
