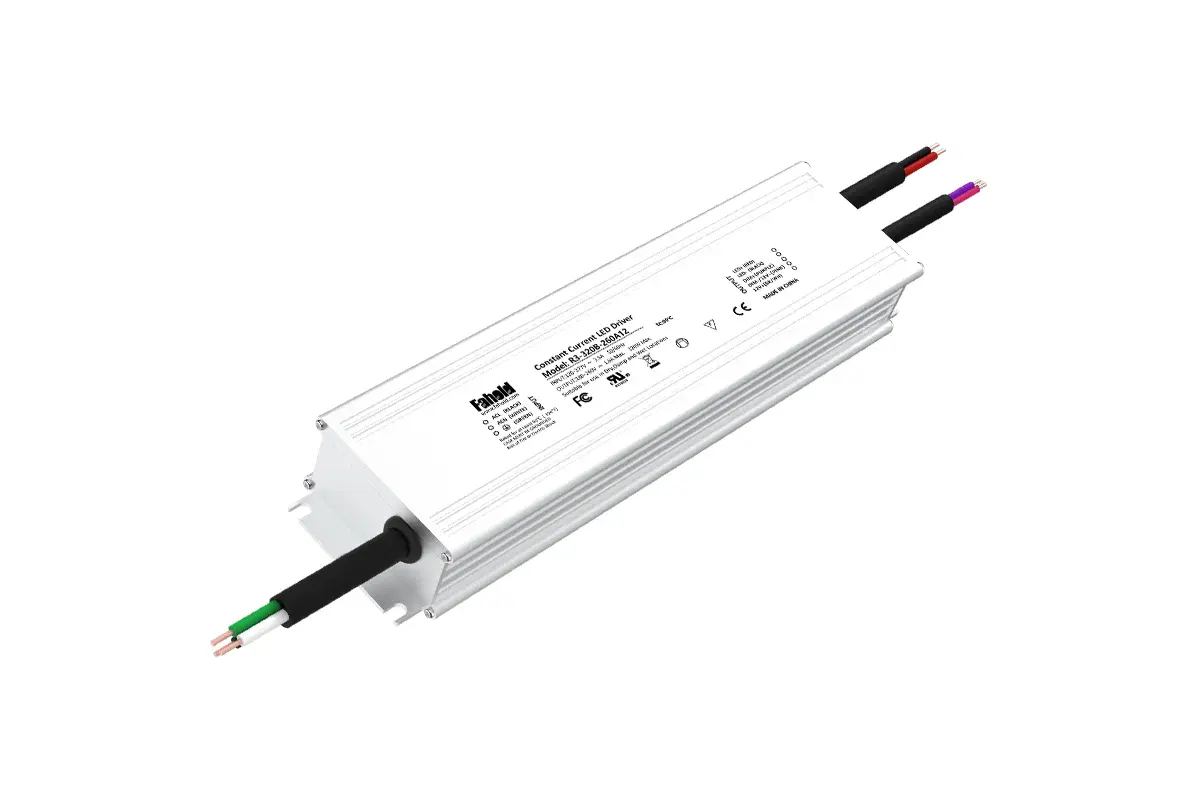

R3-040X-260 40W 180-260V Outdoor LED Driver

R3-040X-260 is a 40W non-isolated waterproof LED driver from the FAHOLD R3 Series, developed for outdoor luminaires including shoebox lights, wall lights, street lights and flat lighting systems. It operates from a rated 120-277Vac input and provides a 180-260V output-voltage range with up to 0.20A Max. output current. The R3 platform combines compact mechanical design, high efficiency and programmable control options for outdoor and industrial lighting projects.

40W 180-260V Outdoor LED Driver for Shoebox and Street Lighting

For luminaire manufacturers, lighting engineers and OEM project teams, R3-040X-260 fits specifications such as 40W outdoor LED driver, 120-277V AC LED power supply, non-isolated street light driver, waterproof LED driver for shoebox lights and programmable LED driver for wall lighting. The 180-260V output platform is designed for high-voltage LED strings used in compact roadway and area-lighting fixtures.

This lower-power configuration is suited to compact wall lights, small shoebox luminaires and lower-output street-lighting fixtures where a slim waterproof driver and adjustable control options are required.

Control Options and Output Adjustment

In the official R3 model code, X identifies the control configuration. Type B supports 0-10V, PWM and Rx control. Type D supports light-control and power-adjustment functions with optional 0-10V control. Type E supports 0-10V dimming, optical control, DIP-switch power adjustment and optional external NTC functions. Type V is non-dimmable and uses a potentiometer for fine output-current tuning.

Electrical Performance and Outdoor Protection

The main electrical parameters for R3-040X-260 include 40W maximum output power, 180-260V output voltage, 0.20A Max. output-current capability, power factor of >0.95 and typical efficiency of 94%. The enclosure measures 139×54×32 mm. The R3 family is presented as an IP65 / IP67 waterproof outdoor LED-driver platform with a compact aluminum housing and support for optical control, DIP-switch power adjustment and external NTC options.

Relevant long-tail search terms include 40W street light driver, 180-260V outdoor LED driver, waterproof shoebox light power supply, IP67 wall light LED driver, 0-10V outdoor lighting driver, programmable non-isolated LED driver and 120-277V AC LED driver. FAHOLD specifies a 5+ years warranty.
