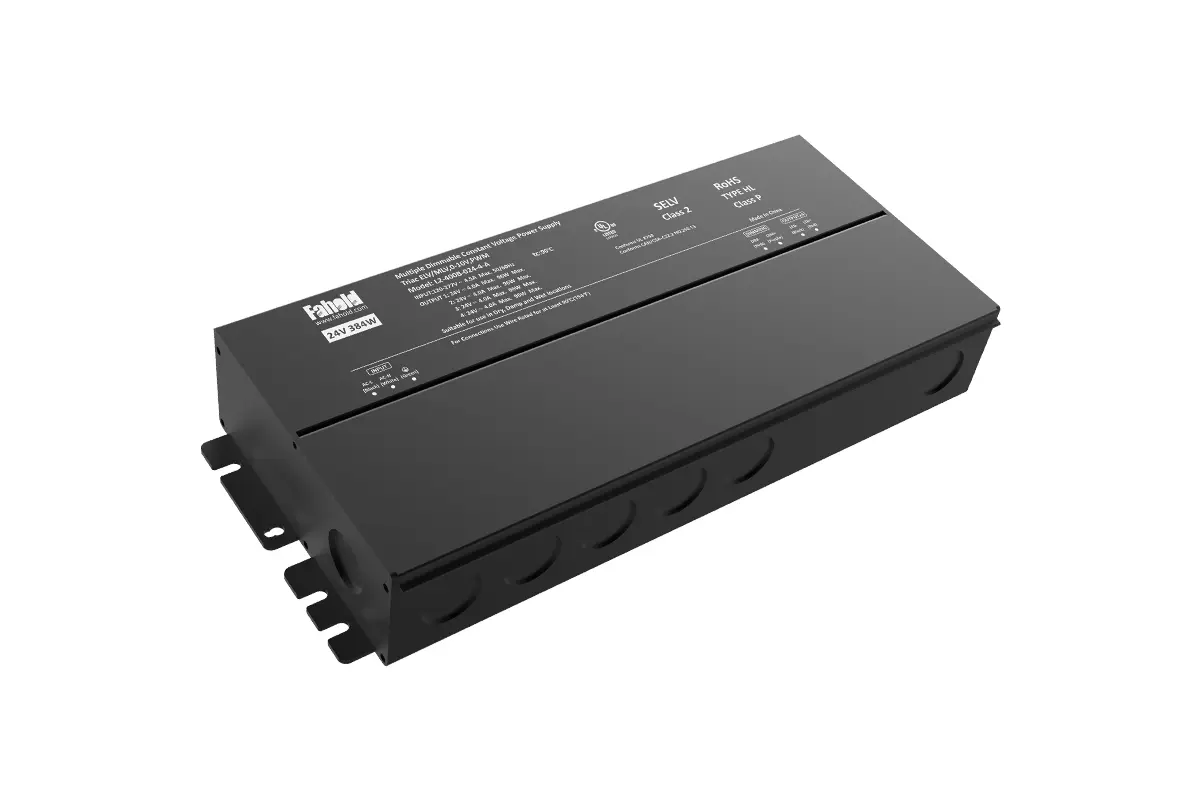

L2-200X-024-2A 192W 24V 5-in-1 Dimmable LED Driver

L2-200B-024-2A is a 192W 24V constant-voltage LED driver developed for professional architectural lighting, signage, advertising lighting and LED strip applications. It accepts a wide 100-277Vac input and provides a regulated 24Vdc / 4A × 2 output. With power factor above 0.95 and typical efficiency of 91%, the unit is designed for projects that need reliable LED power conversion together with dimming control.

192W 24V 5-in-1 dimmable LED driver for professional lighting projects

As a 5-in-1 dimmable constant-voltage LED power supply, L2-200B-024-2A is intended for installations where the lighting level needs to be adjusted while maintaining a stable DC output. The L2-A platform combines Class 2 power-supply construction, an IP65 metal enclosure and 0-100% flicker-free dimming capability stated for the series. It is suitable for dry, damp and wet-location lighting projects where a protected dimmable LED driver is preferred over an open-frame power supply.

The 2-channel output arrangement helps split the LED load across separate branches, which is useful in signage, cabinet lighting and architectural installations where multiple LED runs need to be powered from one driver enclosure. This higher-output platform is suitable for larger signage, longer linear-lighting layouts and multi-section architectural lighting where one centralized dimmable LED power supply can simplify system design. The 24V DC output is particularly useful for longer LED strip runs and architectural linear lighting, where a 24V system can help reduce operating current compared with an equivalent 12V load.

Key specification considerations

For engineers, lighting manufacturers and project buyers comparing a 192W LED driver, the important selection points are the 24V constant-voltage output, 4A × 2 output capacity, 100-277Vac input range, IP65 enclosure, PF >0.95 and the L2-A multi-dimming platform. The enclosure size for this model is 217×121.5×46 mm. Built-in protection for the series includes SCP, OVP, OTP and OLP, helping support stable operation in demanding LED lighting installations.

In search and specification terms, L2-200B-024-2A fits requirements such as 192W 24V dimmable LED driver, 100-277V AC to 24V DC LED power supply, IP65 Class 2 LED driver, constant-voltage driver for LED strip lights and dimmable LED power supply for signage and architectural lighting. FAHOLD offers a 5-7 years warranty warranty for this L2-A product line.
