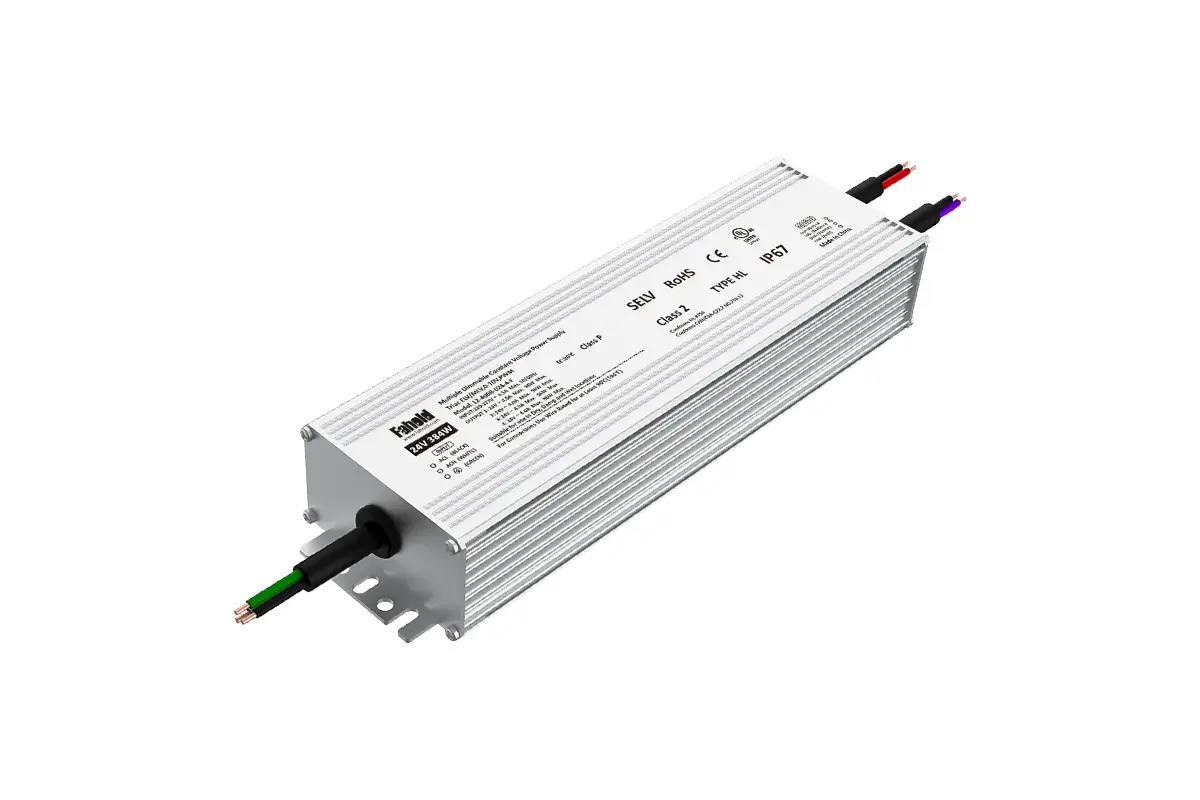

L2-180B-012-3F 180W 12V 5-in-1 Dimmable LED Driver

L2-180B-012-3F is a 180W 12V waterproof constant-voltage LED driver from the FAHOLD L2-F Series, developed for professional architectural lighting and commercial LED installations. It accepts 100-277Vac input and provides a regulated 12Vdc / 5A × 3 output. With an IP67 enclosure, Class 2 power-supply design and multi-mode dimming capability, this model is suitable for projects that require a protected 180W 12V dimmable LED driver rather than an open-frame power supply.

180W 12V IP67 Dimmable LED Driver for Architectural Lighting

The L2-F platform supports phase-cut and low-voltage dimming methods listed for the series, including TRIAC, ELV/MLV, 0-10V, PWM and potentiometer control. This makes L2-180B-012-3F relevant to specifications calling for a 5-in-1 dimmable LED power supply, a TRIAC dimmable constant-voltage driver, or a 100-277V AC to 12V DC LED driver. The series is designed for 0-100% dimming and flicker-free operation, supporting smoother light-level control in architectural, display and decorative lighting applications.

This higher-output platform is suited to longer LED runs, larger display lighting sections and commercial architectural lighting systems where centralized power and dimming can simplify installation. The 3-channel output configuration allows the total load to be distributed across multiple LED branches, which can simplify wiring and load planning on larger lighting assemblies. For 12V systems, the driver is particularly relevant to low-voltage LED strips, cabinet lighting and illuminated modules that require a regulated 12V DC constant-voltage source.

Electrical and Project Selection Considerations

For engineers, lighting manufacturers and project buyers, the main selection points for L2-180B-012-3F are its 180W maximum output, 12V constant-voltage architecture, 5A x 3 output capacity, power factor of >0.95 and typical efficiency of 91.00%. The enclosure measures 211×67.5×40 mm. The IP67 construction is suitable for applications that need a waterproof LED driver for damp or wet-location installations, while the L2-F protection platform includes SCP, OVP, OTP and OLP functions.

Typical specification searches for this model include 180W 12V LED driver, IP67 dimmable LED driver, Class 2 constant-voltage LED power supply, LED strip power supply, TRIAC dimmable LED driver for architectural lighting and waterproof LED driver for cabinet, display and linear lighting. The L2-F Series carries a 5 years warranty.
