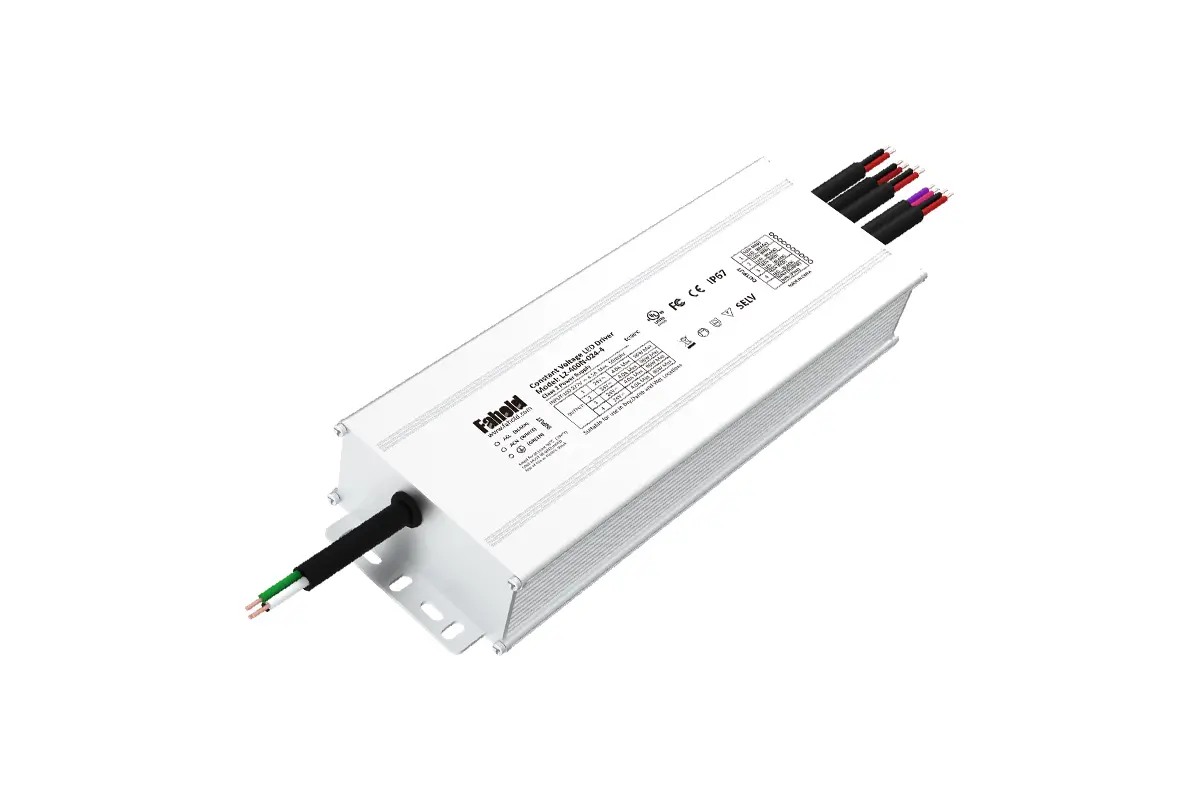

L2-060X-024 60W 24V Dimmable Class 2 LED Driver

L2-060B-024 is a 60W 24V constant-voltage LED driver from the FAHOLD L2 Series, developed for professional signage lighting and multi-channel Class 2 LED power systems. It accepts a wide 100-277Vac input and delivers a regulated 24Vdc / 2.5A output. The L2 platform is designed for LED signage projects that require high power factor, efficient constant-voltage conversion and a protected enclosed driver architecture.

60W 24V Class 2 LED Driver for Signage and LED Strip Lighting

For sign manufacturers, lighting engineers and project buyers, L2-060B-024 fits specifications calling for a 60W 24V LED driver, 100-277V AC to 24V DC LED power supply, Class 2 constant-voltage LED driver or a dimmable LED power supply for signage lighting. Type B models in the L2 Series support dimming and programming functions for projects where brightness control or application-specific output behavior is required.

This output level is suitable for smaller signage modules, illuminated letters, compact LED light boxes and short-to-medium LED strip runs. The single-output configuration is straightforward for projects using one primary constant-voltage LED load. The 24V DC architecture is useful for longer LED strip runs and larger signage systems because it can reduce operating current compared with an equivalent 12V load.

Electrical and Project Selection Considerations

The main specification points for L2-060B-024 include a maximum output of 60W, 24V constant-voltage operation, 2.5A output capacity, power factor of >0.95 and typical efficiency of 86%. The enclosure size is 179×53.5×29.8 mm. Built-in protection for the L2 platform includes SCP, OVP, OTP and OLP, supporting reliable operation in demanding signage and commercial LED installations.

Typical long-tail searches relevant to this product include 60W 24V LED driver for signage, multi-channel LED driver, Class 2 LED power supply, constant-voltage driver for LED strip lights, LED driver for light boxes and billboards and 100-277Vac signage LED power supply. FAHOLD specifies a 5-7 years warranty warranty range for the L2 Series.
