R2 Non-Isolated Outdoor LED Drivers (120–277Vac)
FAHOLD R2 non-isolated outdoor LED drivers provide compact constant-current power for shoebox lights, wall lights, street lights, canopy fixtures, linear high-bay luminaires and other professional lighting systems. The current series includes eight models from 40W to 320W, all using a 120–277Vac input and 180–260Vdc high-voltage LED output platform.
R2 combines a slim IP42 enclosure with programmable output-current capability and high efficiency for integration inside suitably protected luminaires. Depending on model configuration, available control options include non-dimmable operation, 0–10V, PWM, Rx, resistor, DALI and timer dimming, together with offline programming and photosensor compatibility.
Compare the eight models below by wattage and output-current range. Select R2 when your LED module operates within 180–260Vdc and the driver will be installed inside a protected fixture or electrical compartment.
R2 120–277V Non-Isolated Outdoor LED Drivers
FAHOLD R2 is a compact non-isolated constant-current LED driver platform developed for professional outdoor and industrial luminaires using high-voltage LED strings. The current series includes eight power classes from 40W to 320W, all operating from 120–277Vac input with a common 180–260Vdc LED output architecture.
R2 is particularly relevant to shoebox lights, wall lights, canopy fixtures, street lighting, area lighting and linear high-bay luminaires where compact driver integration, programmable output and high electrical efficiency are required.
The series uses an IP42 enclosure, so it is primarily intended for installation inside a suitably protected luminaire or electrical compartment rather than relying on the driver enclosure alone for waterproof outdoor protection.
Compare All 8 R2 Outdoor LED Driver Models
| Model | Power | Rated Input | Output Voltage | Output Current | Typical Efficiency |
|---|---|---|---|---|---|
| R2-040X-260 | 40W | 120–277Vac | 180–260Vdc | 0.15–0.20A | 94% |
| R2-060X-260 | 60W | 120–277Vac | 180–260Vdc | 0.22–0.30A | 94% |
| R2-080X-260 | 80W | 120–277Vac | 180–260Vdc | 0.29–0.40A | 95% |
| R2-100X-260 | 100W | 120–277Vac | 180–260Vdc | 0.35–0.58A | 95% |
| R2-150X-260 | 150W | 120–277Vac | 180–260Vdc | 0.57–0.75A | 95% |
| R2-200X-260 | 200W | 120–277Vac | 180–260Vdc | 0.75–1.00A | 95% |
| R2-240X-260 | 240W | 120–277Vac | 180–260Vdc | 0.93–1.20A | 95% |
| R2-320X-260 | 320W | 120–277Vac | 180–260Vdc | 1.20–1.60A | 96% |
All eight models use the same 180–260Vdc voltage platform but support different output-current and maximum-power ranges. Select the model from the LED string voltage, required operating current and maximum electrical load rather than wattage alone.
120–277Vac LED Drivers for Commercial Lighting
All current R2 models use a 120–277Vac rated-input platform. This covers common commercial lighting supplies including nominal 120V, 208V, 240V and 277V.
The wide-input architecture allows compatible luminaire families to operate across several North American commercial electrical systems without changing the basic R2 driver platform.
AC input voltage is different from LED output voltage. A fixture supplied from 277Vac can use an R2 driver that provides regulated 180–260Vdc constant-current output to the LED string.
180–260V Constant-Current LED Drivers
The complete R2 range uses a 180–260Vdc high-voltage constant-current output architecture. This makes the series suitable for LED boards designed around relatively long series-connected LED strings.
A higher LED-string voltage allows substantial fixture power to be delivered at lower current than a low-voltage high-current architecture. Depending on the fixture design, this can influence PCB routing, conductor size, connector requirements and internal power density.
The LED module's minimum and maximum forward voltage must remain inside the 180–260Vdc operating window of the selected R2 driver.
Non-Isolated LED Driver Architecture
R2 uses a non-isolated power architecture. This allows a compact and efficient driver design, but the LED output does not provide galvanic isolation from the mains input in the same way as an isolated driver topology.
For this reason, fixture designers must evaluate PCB insulation, creepage and clearance, wiring, connectors, accessible conductive parts, enclosure construction and applicable safety requirements as part of the complete luminaire design.
Driver-level certification does not automatically certify the finished luminaire.
Compact LED Driver for Shoebox Lights
R2 is especially relevant to shoebox luminaires where the LED driver must fit into a restricted driver compartment while supplying a relatively high-voltage LED string.
The current 40W and 60W models, for example, use an approximately 130 × 48 × 32mm enclosure. This compact format helps fixture manufacturers integrate the driver into smaller shoebox, wall and canopy-style housings.
Mechanical dimensions increase with power, so the drawing for the exact R2 model should always be reviewed before luminaire tooling or mounting-point design.
R2 LED Drivers for Wall Lights and Wall Packs
Wall-mounted outdoor luminaires often require compact power electronics because the available enclosure depth and width are limited.
R2 provides 40W through 320W power classes within the same 180–260Vdc electrical architecture, allowing compatible wall-light and wall-pack designs to scale across several output levels while maintaining a common driver family.
R2 Drivers for Linear High-Bay Lighting
The R2 platform is also positioned for compatible linear high-bay and industrial luminaires using high-voltage LED strings.
Its compact non-isolated architecture can be useful where the driver is integrated into the luminaire frame or a protected internal compartment and where a 180–260Vdc LED load matches the selected current range.
R2 Drivers for Street and Area Lighting
R2 can support compatible street and area luminaires when the fixture uses a 120–277Vac supply, a 180–260Vdc LED string and a driver power class between 40W and 320W.
Because R2 uses an IP42 enclosure, the complete street-light housing must provide the required outdoor environmental protection around the driver and electrical connections.
For application-level roadway selection, review
FAHOLD Street Lighting LED Driver Solutions
.
40W R2 Outdoor LED Driver
R2-040X-260 provides 40W maximum output with a 180–260Vdc voltage window and 0.15–0.20A output-current range.
It is the lowest-power product in the current R2 outdoor range and is particularly relevant to compact shoebox, wall, canopy and smaller industrial fixtures.
Typical efficiency is approximately 94% with power factor above 0.95.
60W R2 Outdoor LED Driver
R2-060X-260 provides a 180–260Vdc output window with approximately 0.22–0.30A programmable current capability and 60W maximum output.
The current model uses a compact approximately 130 × 48 × 32mm enclosure, typical efficiency of approximately 94% and power factor above 0.95.
80W R2 LED Driver
R2-080X-260 extends the platform to 80W with a 0.29–0.40A current range while retaining the common 180–260Vdc LED output architecture.
Typical efficiency increases to approximately 95%, making the model suitable for compatible medium-power outdoor and industrial LED loads.
100W R2 High-Voltage LED Driver
R2-100X-260 provides a 0.35–0.58A output-current range within the common 180–260Vdc platform.
This power class is relevant to commercial wall lights, shoebox fixtures, area lighting and similar luminaires requiring approximately 100W of LED power from a high-voltage LED string.
150W R2 Outdoor LED Driver
R2-150X-260 provides a 180–260Vdc output window and approximately 0.57–0.75A output-current range.
The 150W class can support higher-output shoebox, street, area and industrial luminaires while retaining the same R2 electrical architecture.
200W R2 Outdoor LED Driver
R2-200X-260 provides approximately 0.75–1.00A within the 180–260Vdc output window.
This model is suited to compatible higher-power commercial luminaires where the LED string remains within the R2 voltage range and the driver can be installed inside a suitably protected enclosure.

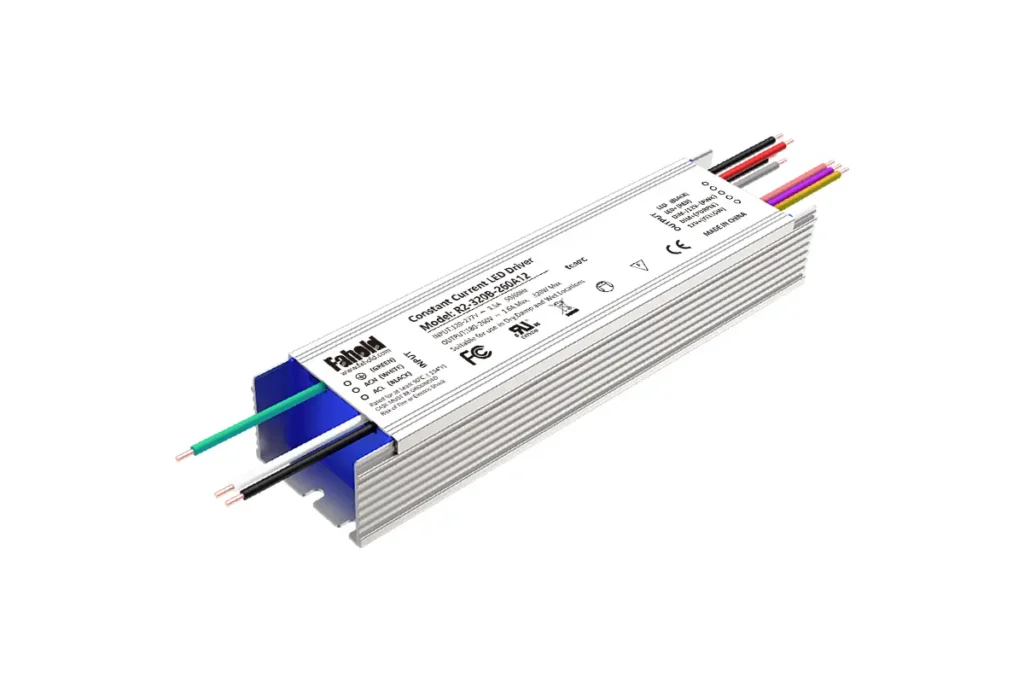

240W R2 LED Driver
R2-240X-260 extends the output-current range to approximately 0.93–1.20A with a maximum output power of 240W.
The model is relevant to higher-output street, area, shoebox and industrial fixtures using the common 180–260Vdc high-voltage LED-string architecture.
320W R2 High-Power Outdoor LED Driver
R2-320X-260 is the highest-power model in the current R2 outdoor range. It provides approximately 1.20–1.60A within the 180–260Vdc output window and reaches approximately 96% typical efficiency.
The 320W model provides a compact high-voltage driver direction for compatible high-output outdoor and industrial luminaires where a non-isolated architecture is appropriate.
Programmable R2 Outdoor LED Drivers
R2 supports offline programming, allowing compatible output parameters to be configured within the electrical limits of the selected model.
For OEM luminaire manufacturers, programmable current can allow one R2 power platform to support related fixture variants with different operating points, provided that LED voltage, current, maximum power and thermal limits are respected.
The programmed setting should be defined before production so the driver configuration, fixture wattage and luminaire label remain consistent.
R2 Control and Dimming Configurations
Although this R2 series is located under the fixed-output / non-dimmable outdoor category, the underlying R2 platform supports multiple control configurations depending on model code and project requirements.
| Control Direction | Available Platform Function |
|---|---|
| Non-Dimmable | Fixed-output / ON-OFF project configuration |
| 0–10V | Analog external dimming on compatible configurations |
| PWM | PWM control for compatible lighting controllers |
| Rx / Resistor | Additional external-control directions depending on configuration |
| Timer Dimming | Scheduled output profiles for compatible outdoor-lighting projects |
| DALI | Digital-control configuration within the wider R2 platform |
Control availability should be confirmed for the exact model code when requesting samples or production units.
Photosensor-Compatible Outdoor LED Driver Platform
Current R2 documentation identifies the platform as photosensor compatible. This can be relevant to outdoor fixtures that need to respond to ambient light levels or operate as part of a photocell-controlled lighting system.
The exact sensor interface and required driver configuration should be confirmed during project development.
Fixed-Output R2 LED Drivers
For projects that do not require external dimming, R2 can be specified in a non-dimmable / fixed-output configuration.
This provides a straightforward operating direction for shoebox lights, wall packs, area lights and industrial fixtures that primarily use branch-circuit ON/OFF control.
Because R2 is a configurable platform, the fixed-output requirement should be explicitly stated when requesting samples or production quotations.
IP42 LED Driver for Protected Luminaire Integration
Current R2 models use an IP42 enclosure. This means R2 should not be positioned as a standalone waterproof LED driver.
Instead, the driver is intended to be integrated inside a luminaire or enclosure that provides the environmental protection required by the final installation.
This distinction is important for street, wall and shoebox lighting because the IP rating of the finished fixture depends on the complete housing, seals, connectors, cable entries and installation design rather than the driver alone.
Need a Waterproof Alternative? Compare R3
Projects that use the same broad 120–277Vac and 180–260Vdc electrical direction but require stronger driver-level protection should compare the R3 waterproof outdoor platform.
R3 provides corresponding 40W through 320W power classes with IP65 / IP67 enclosure configurations for outdoor applications requiring greater resistance to dust and moisture.
Compare
R3 Waterproof Outdoor LED Drivers
.
R2 vs R3 Outdoor LED Drivers
| Requirement | R2 | R3 |
|---|---|---|
| Rated Input | 120–277Vac | 120–277Vac |
| Output Platform | 180–260Vdc | 180–260Vdc |
| Power Range | 40W–320W | 40W–320W |
| Driver Protection | IP42 | IP65 / IP67 |
| Main Selection Direction | Compact internal fixture integration | Waterproof outdoor integration |
Choose R2 when the luminaire itself provides sufficient environmental protection and compact driver integration is the priority. Choose R3 when the driver enclosure requires higher protection against dust and moisture.
R2 vs F1 Outdoor LED Drivers
R2 and F1 are both outdoor constant-current platforms, but they serve different LED and fixture architectures.
| Requirement | R2 | F1 |
|---|---|---|
| Rated Input | 120–277Vac | 100–277Vac |
| Current Power Direction | 40W–320W | 40W–400W |
| LED Voltage Direction | Dedicated 180–260Vdc platform | Multiple low-, medium- and high-voltage platforms |
| Enclosure Direction | Compact IP42 internal integration | IP65 / IP67 outdoor configurations |
| Primary Advantage | Compact high-voltage LED-string architecture | Broad voltage selection and outdoor enclosure options |
For projects requiring a broader LED voltage selection or IP65 / IP67 F1 architecture, compare
F1 100–277Vac Outdoor LED Drivers
.
Efficiency and Power Factor
Current R2 models provide typical efficiency from approximately 94% to 96%, with the 320W model reaching approximately 96%. Power factor is specified above 0.95 across the current series.
Actual efficiency depends on input voltage, programmed output current, LED operating voltage and thermal conditions. Model-level performance should therefore be evaluated at the intended fixture operating point.
DM 6kV / CM 6kV Surge Protection
Current R2 technical data specifies differential-mode and common-mode surge protection up to 6kV.
Surge protection is relevant to outdoor and industrial lighting because long cable runs, switching events and lightning-related disturbances can expose luminaires to electrical transients.
Driver-level surge capability should be coordinated with facility grounding and any system-level surge-protection strategy.
SCP, OVP and OTP Protection
Current R2 products include short-circuit protection, over-voltage protection and over-temperature protection.
These functions provide driver-level protection during abnormal conditions but do not replace correct LED-board design, fixture thermal management, branch-circuit protection or grounding.
cULus, CE and Class P LED Driver Platform
Current R2 product documentation lists cULus, CE and Class P certifications for the platform.
Certification should be confirmed for the exact ordered model and target market. Driver-level certification does not automatically certify the complete outdoor or industrial luminaire.
How to Select the Right R2 Outdoor LED Driver
- Confirm the AC supply.
Verify that the fixture operates within the 120–277Vac rated-input range. - Define the LED forward-voltage range.
Provide the minimum, nominal and maximum forward voltage of the LED string. - Confirm 180–260Vdc compatibility.
The complete LED operating range must remain inside the R2 voltage window. - Determine the required output current.
Match the LED operating current to the supported range of the selected R2 model. - Select the correct power class.
Choose from 40W, 60W, 80W, 100W, 150W, 200W, 240W or 320W according to the actual LED load. - Define the control configuration.
Specify fixed-output, 0–10V, PWM, Rx, resistor, timer, DALI or another required R2 configuration. - Define the programmed operating point.
Specify the required output current before production when offline programming is used. - Confirm enclosure protection.
R2 is an IP42 platform, so verify that the finished luminaire provides sufficient environmental protection. - Review surge and thermal conditions.
Check installation environment, grounding, system surge strategy, driver mounting and luminaire cooling. - Confirm certification requirements.
Verify the exact model and complete luminaire compliance requirements for the intended market.
R2 LED Driver Manufacturer for OEM Outdoor Lighting
R2 selection requires coordination between the LED board, driver and luminaire enclosure. AC input, LED voltage, operating current, programmed power, control interface, available driver space, environmental protection, surge requirements and certification can all affect the final configuration.
FAHOLD supports R2 model matching, programmable-current configuration, technical datasheets, samples and OEM/ODM outdoor-lighting projects. For accurate pre-selection, provide the AC input, LED voltage range, required current, maximum fixture wattage, control method, available driver space, environmental requirements, surge requirement, certification target and expected quantity.
For fixed-output product selection, return to
Non-Dimmable Outdoor LED Drivers
.
For the complete outdoor range, review
Outdoor LED Drivers
.
Frequently Asked Questions
What is the FAHOLD R2 outdoor LED driver series?
FAHOLD R2 is a compact non-isolated constant-current LED driver platform for shoebox lights, wall lights, street lights, linear high-bay fixtures and other professional luminaires. The current range includes eight models from 40W to 320W with 120–277Vac input and 180–260Vdc output.
What wattages are available in the R2 Series?
The current R2 outdoor range includes 40W, 60W, 80W, 100W, 150W, 200W, 240W and 320W models. All eight use a 180–260Vdc LED output platform but provide different output-current ranges.
What input and output voltage does the R2 Series use?
Current R2 outdoor models use 120–277Vac input and 180–260Vdc constant-current output. The LED module's complete forward-voltage range must remain within the 180–260Vdc operating window.
What output-current range is available for R2 LED drivers?
Output current depends on power class. Current R2 models range from 0.15–0.20A at 40W to 1.20–1.60A at 320W, with intermediate 60W, 80W, 100W, 150W, 200W and 240W options.
Are R2 LED drivers non-dimmable only?
No. R2 is a configurable platform. Non-dimmable versions are available, while compatible model configurations can also support 0–10V, PWM, Rx, resistor, DALI and timer control together with offline programming. The required control version should be specified when ordering.
Are R2 outdoor LED drivers programmable?
Yes. The R2 platform supports offline programming for compatible configurations, allowing output parameters to be adjusted within the electrical limits of the selected model.
Is the R2 LED driver waterproof?
R2 uses an IP42 enclosure and should normally be installed inside a suitably protected luminaire or electrical compartment. If driver-level IP65 / IP67 waterproof protection is required, the R3 platform is the more suitable direction.
What is the difference between R2 and R3 outdoor LED drivers?
Both platforms use 120–277Vac input, 180–260Vdc output and cover 40W to 320W. R2 uses an IP42 compact enclosure for protected internal fixture integration, while R3 provides IP65 / IP67 waterproof enclosure options for more demanding outdoor installations.
Is R2 suitable for shoebox and wall lighting?
Yes. R2 is designed for compatible shoebox lights, wall lights, canopy-style fixtures, linear high-bay luminaires and other lighting systems using a 180–260Vdc high-voltage LED string. The driver should be installed within an enclosure that provides the required environmental protection.
What information should I provide to select an R2 LED driver?
Provide the AC input voltage, LED minimum and maximum forward voltage, required operating current, maximum fixture wattage, control or dimming requirement, available driver space, enclosure protection, surge requirement and target certification. These parameters allow the correct R2 power class and configuration to be selected.
