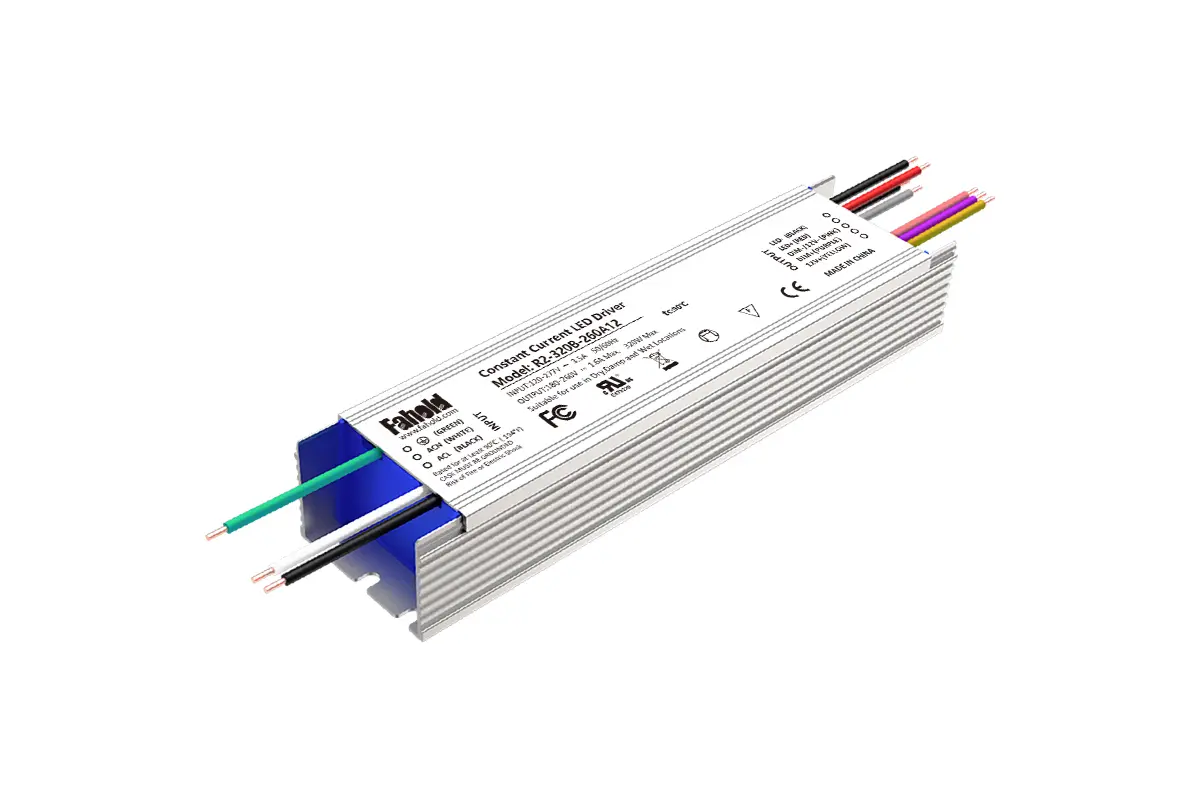

R2-080X-260 80W 180-260V Outdoor LED Driver

R2-080X-260 is a 80W non-isolated constant-current LED driver from the FAHOLD R2 Low Power Series, developed for outdoor and industrial luminaires such as shoebox lights, wall lights and linear high-bay fixtures. It operates from a rated 120-277Vac input and provides a 180-260Vdc output-voltage range with a programmable output-current range of 0.29-0.40A. The R2 platform combines compact size, high efficiency and off-line programming for flexible luminaire configuration.

80W Outdoor LED Driver for Shoebox, Wall and Linear High Bay Lighting

For outdoor-lighting manufacturers, industrial luminaire suppliers and OEM project teams, R2-080X-260 fits specifications such as 80W outdoor LED driver, 120-277V AC LED power supply, non-isolated constant-current LED driver, programmable shoebox light driver and LED driver for wall lights and linear high bays. Its 180-260Vdc output window is designed for high-voltage LED strings while keeping the driver body compact.

This low-power range is suitable for compact shoebox fixtures, wall packs, canopy-style outdoor luminaires and smaller linear high-bay systems where driver size and efficiency are important.

Programmable Control and Dimming Options

The official R2 catalog presents multiple control variants for this model family, including 0-10V, PWM, Rx, resistor, DALI, timer-dimming and non-dimmable configurations. Off-line programming allows output parameters to be adjusted for different fixture requirements, and the platform is compatible with photosensor control. Optional auxiliary outputs and interface configurations are also available depending on the final model option.

Electrical Performance and Protection

The main electrical parameters for R2-080X-260 include 80W maximum output power, 180-260Vdc output voltage, 0.29-0.40A output-current range, power factor of >0.95 and typical efficiency of 95.00%. The enclosure measures 130×48×32 mm. The series uses a non-isolated architecture and carries an IP42 enclosure rating. Protection functions include short-circuit, over-voltage and over-temperature protection, while surge protection is specified at DM 6kV / CM 6kV.

Relevant long-tail search terms include 80W shoebox light LED driver, outdoor LED driver for wall lights, programmable linear high bay driver, 120-347V LED driver, non-isolated outdoor lighting power supply, high-voltage constant-current LED driver and photosensor-compatible LED driver. FAHOLD specifies a 5+ years warranty.
