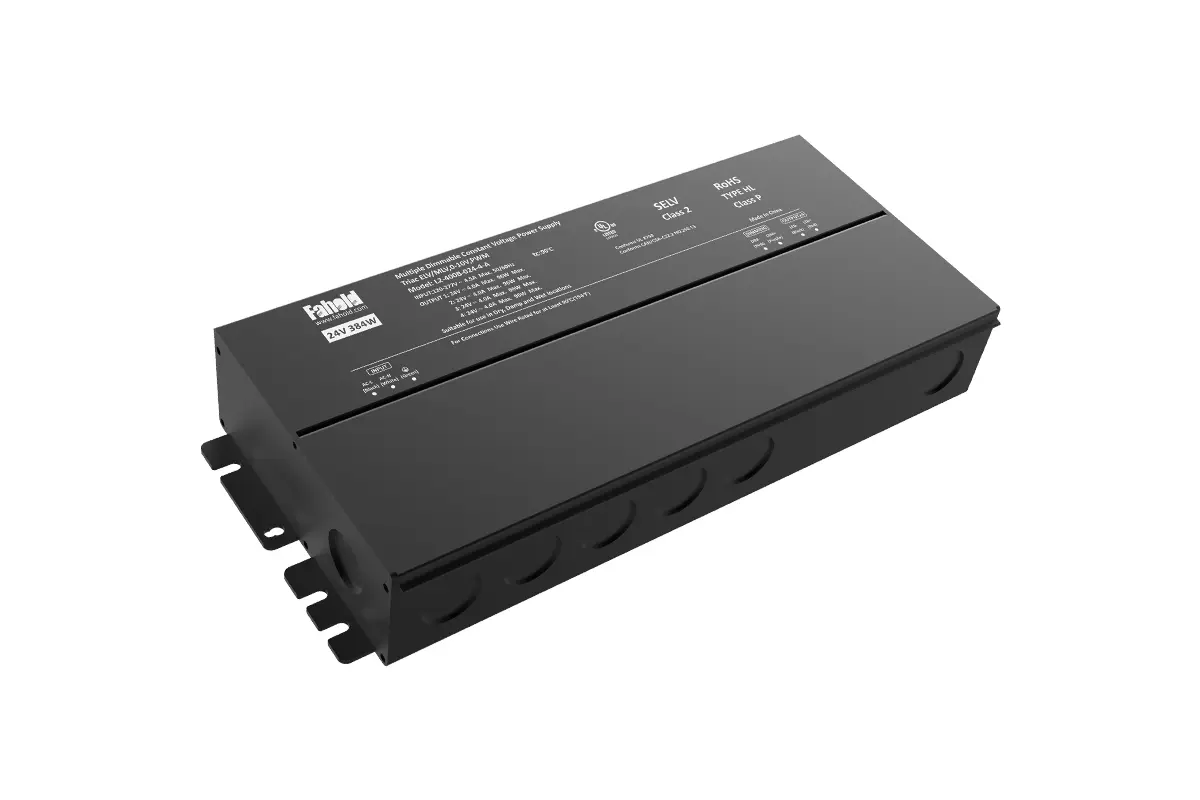

L2-240X-012-4A 240W 12V 5-in-1 Dimmable LED Driver

L2-240B-012-4A is a 240W 12V constant-voltage LED driver developed for professional architectural lighting, signage, advertising lighting and LED strip applications. It accepts a wide 100-277Vac input and provides a regulated 12Vdc / 5A × 4 output. With power factor above 0.95 and typical efficiency of 91%, the unit is designed for projects that need reliable LED power conversion together with dimming control.

240W 12V 5-in-1 dimmable LED driver for professional lighting projects

As a 5-in-1 dimmable constant-voltage LED power supply, L2-240B-012-4A is intended for installations where the lighting level needs to be adjusted while maintaining a stable DC output. The L2-A platform combines Class 2 power-supply construction, an IP65 metal enclosure and 0-100% flicker-free dimming capability stated for the series. It is suitable for dry, damp and wet-location lighting projects where a protected dimmable LED driver is preferred over an open-frame power supply.

Its 4-channel architecture supports larger multi-run lighting systems and makes it easier to distribute the total load across multiple LED branches in signage and architectural lighting projects. The higher power capacity is aimed at large illuminated signs, extensive LED strip layouts and commercial architectural lighting systems where multiple lighting sections may be supplied from one driver. For 12V LED systems, the driver is relevant to common low-voltage LED strip, signage and illuminated-letter applications that require a regulated 12V DC constant-voltage source.

Key specification considerations

For engineers, lighting manufacturers and project buyers comparing a 240W LED driver, the important selection points are the 12V constant-voltage output, 5A × 4 output capacity, 100-277Vac input range, IP65 enclosure, PF >0.95 and the L2-A multi-dimming platform. The enclosure size for this model is 235×121.5×46 mm. Built-in protection for the series includes SCP, OVP, OTP and OLP, helping support stable operation in demanding LED lighting installations.

In search and specification terms, L2-240B-012-4A fits requirements such as 240W 12V dimmable LED driver, 100-277V AC to 12V DC LED power supply, IP65 Class 2 LED driver, constant-voltage driver for LED strip lights and dimmable LED power supply for signage and architectural lighting. FAHOLD offers a 5-7 years warranty warranty for this L2-A product line.
