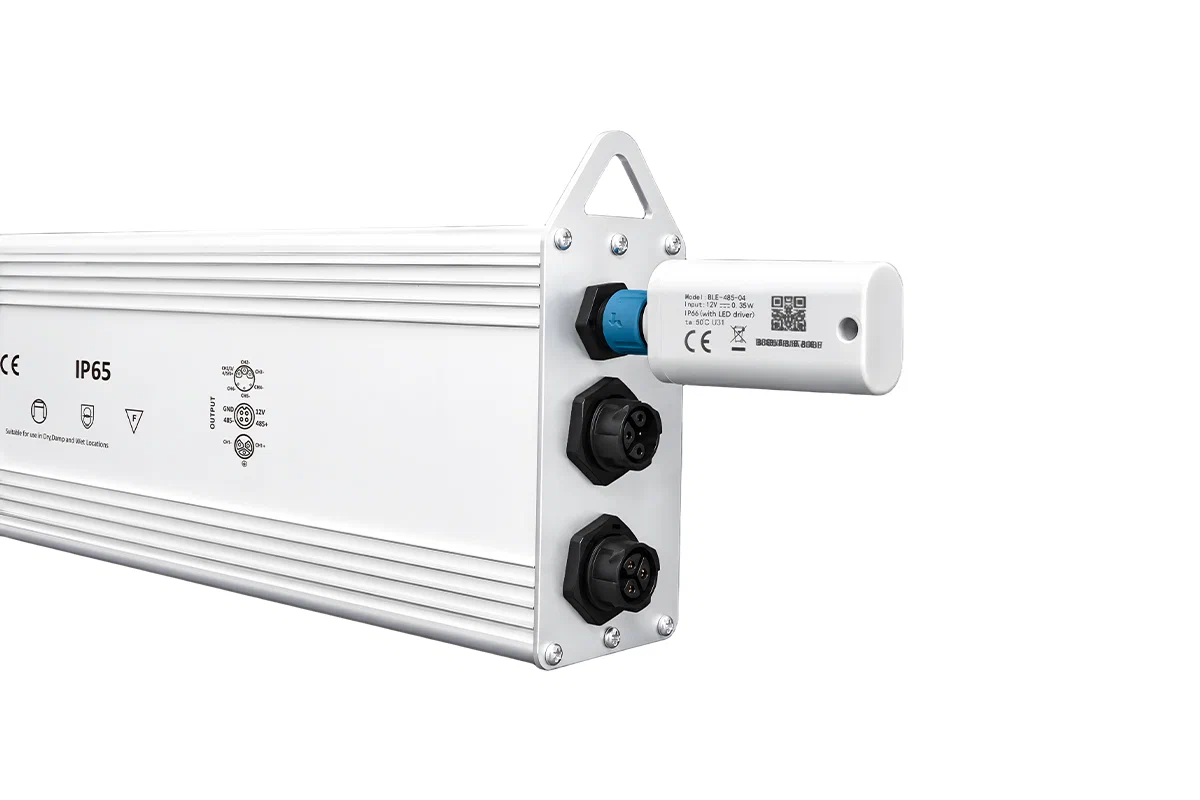

R6-V High-Power Dual-Channel Grow Light LED Driver
High-power non-isolated dual-channel LED driver for commercial top-grow lighting, with independent output control, 0–10V / PWM dimming, dynamic power allocation and 200–480Vac / 277–480Vac rated-input platforms.
High-Power Dual-Channel Driver for Commercial Top-Grow Lighting
The FAHOLD R6-V Series is a high-power dual-channel non-isolated constant-current LED driver platform developed for commercial LED top-grow fixtures. Current models cover 880W, 1000W, 1200W and 1500W. The 880W and 1000W models use 200–480Vac rated input, while the 1200W and 1500W models use 277–480Vac rated input.
Both output channels can be controlled and dimmed independently. The P1 channel uses a 150–500Vdc output platform, while P2 uses 30–150Vdc. The series supports 0–10V and PWM dimming, optional dynamic aux-to-main power transfer, optional 12V / 250mA auxiliary power, DM 8kV / CM 8kV surge protection, IP65 construction and SCP / OCP / OTP protection.
For commercial grow-light manufacturers and OEM fixture engineers, review the broader non-isolated multi-channel grow light driver range or contact FAHOLD for channel-power matching, input-voltage selection, samples and project-specific configuration support.
High-Power Dual-Channel Grow Light Driver Features
Independent Dual-Channel Control
Two constant-current outputs can be controlled and dimmed independently for multi-load commercial top-grow fixtures.
0–10V / PWM Dimming
Two-in-one control supports 0–10V and PWM dimming for commercial horticulture lighting systems.
Dynamic Channel Power Transfer
Optional aux-to-main power shifting enables dynamic power allocation between the dual outputs without exceeding the model total-output rating.
Regular & Suspended Installation
Catalog-supported regular and suspended housing formats provide installation flexibility for different top-grow luminaire architectures.
DM 8kV / CM 8kV Surge Protection
Differential-mode and common-mode 8kV surge protection supports demanding high-power horticulture installations.
IP65 & Multi-Protection
IP65 construction combines with SCP, OCP and OTP protection functions for stable high-power grow-light operation.
Commercial LED Top-Grow Lighting Applications
R6-V Series models are designed specifically for high-power commercial top-grow fixtures that require dual-channel control, high-voltage AC input and flexible power allocation.
Commercial LED Top-Grow Lighting
R6-V Certifications & IP65 Protection
Review the applicable North American safety listing, CE / FCC documentation and IP65 enclosure configuration for the selected R6-V model.
R6-V High-Power Dual-Channel Grow Light Driver Models
Compare 880W–1500W R6-V models by 200–480Vac / 277–480Vac rated input, P1 150–500Vdc and P2 30–150Vdc output ranges, channel current, total output power, power factor, typical efficiency and dimensions.
| Model No. | Rated Input Voltage | Output Voltage (Multi-output ) | Full Power Output Curent | Rated.Power | Total Output Power | Typ.PF | Typ.Eff | Dimension (L*W*H)mm |
|---|---|---|---|---|---|---|---|---|
| R6-V880B-500Z-2 | 200-480Vac | P1:150-500Vdc | 1.76-3.60A | 880W | 880W | >0.94 | 96.00% | 414.0*89.0*51.3 |
| P2:30-150Vdc | 2.00-2.40A | 300W | 393.0*113.7*51.3 (Suspended-Type) | |||||
| R6-V1K0B-500Z-2 | 200-480Vac | P1:150-500Vdc | 2.10-4.20A | 1000W | 1000W | >0.95 | 96.00% | 414.0*89.0*51.3 |
| P2:30-150Vdc | 2.00-2.40A | 300W | 393.0*113.7*51.3 (Suspended-Type) | |||||
| R6-V1K2B-500Z-2 | 277-480Vac | P1:150-500Vdc | 2.40-4.20A | 1200W | 1200W | >0.95 | 95.00% | 478.0*89.0*45.0 |
| P2:30-150Vdc | 2.00-2.40A | 300W | 457.0*113.7*51.3 (Suspended-T ype) | |||||
| R6-V1K5B-500Z-2 | 277-480Vac | P1:150-500Vdc | 3.00-4.80A | 1500W | 1500W | >0.94 | 95.00% | 478.0*89.0*45.0 |
| P2:30-150Vdc | 2.00-3.00A | 300W | 457.0*113.7*51.3 (Suspended-Type) |
R6-V Dimming & Dual-Output Configuration

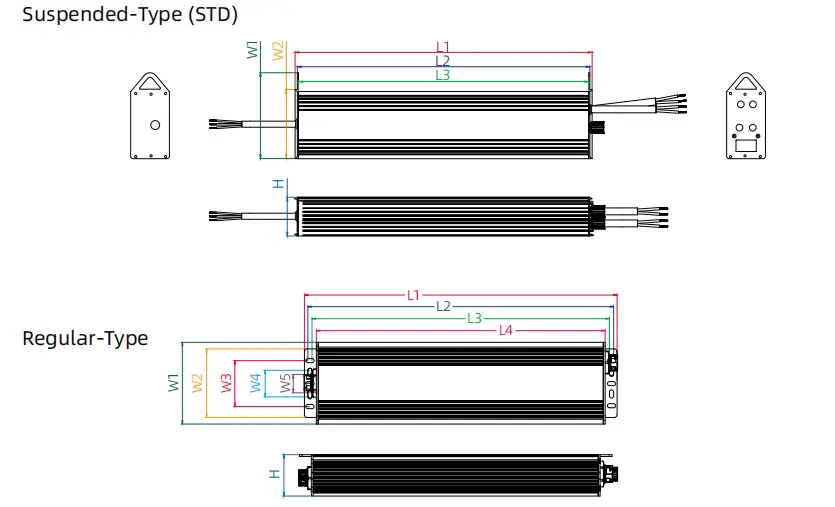

R6-V LED Driver Dimensions
| (For Regular-Type) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | L1 | L2 | L3 | L4 | W1 | W2 | W3 | W4 | W5 | H |
| R6-V880B-500Z-2 | 414 | 405.5 | 396 | 387 | 89 | 65 | 50 | 29 | 20 | 51.3 |
| R6-V1KOB-500Z-2 | 414 | 405.5 | 396 | 387 | 89 | 65 | 50 | 29 | 20 | 51.3 |
| R6-V1K2B-500Z-2 | 478 | 470.5 | 461.5 | 452 | 89 | 65 | 50 | 29 | 20 | 45 |
| R6-V1K5B-500Z-2 | 478 | 470.5 | 461.5 | 452 | 89 | 65 | 50 | 29 | 20 | 45 |
| (For Suspended-Type) | ||||||||||
| Model No. | L1 | L2 | L3 | W1 | W2 | H | ||||
| R6-V880B-500Z-2 | 393 | 387 | 384 | 113.7 | 91.5 | 51.3 | ||||
| R6-V1KOB-500Z-2 | 393 | 387 | 384 | 113.7 | 91.5 | 51.3 | ||||
| R6-V1K2B-500Z-2 | 457 | 451 | 448 | 113.7 | 91.5 | 51.3 | ||||
| R6-V1K5B-500Z-2 | 457 | 451 | 448 | 113.7 | 91.5 | 51.3 |
