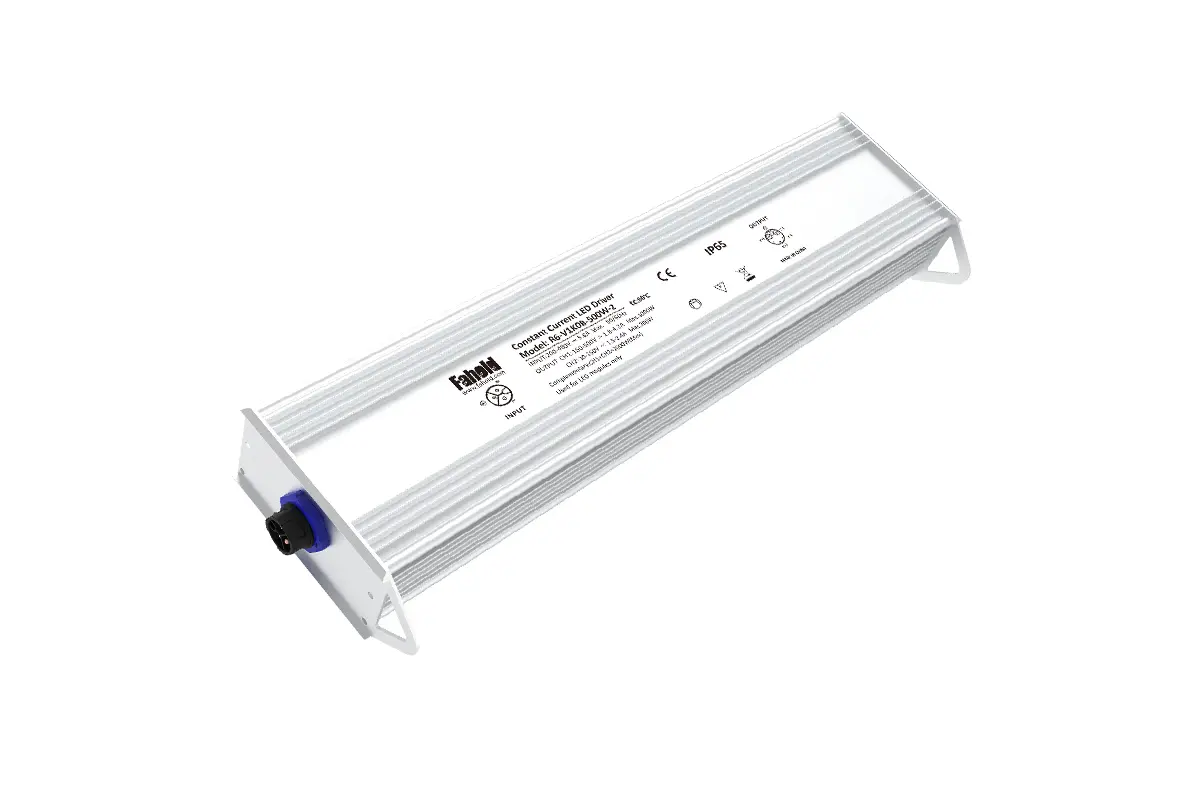

R6-V1K0B-500Z-2 1000W Dual-Channel Horticulture LED Driver

R6-V1K0B-500Z-2 is a 1000W dual-channel non-isolated LED driver from the FAHOLD R6-V Series, developed for professional LED top-grow lights and high-power horticulture lighting fixtures. It operates from a rated 200-480Vac input and provides two independently controlled output channels: P1: 150-500Vdc; P2: 30-150Vdc. The corresponding full-power output-current ranges are P1: 2.10-4.20A; P2: 2.00-2.40A. This architecture allows fixture designers to manage two LED loads from one high-power driver while maintaining independent control and dimming.

1000W Dual-Channel Horticulture LED Driver for Top-Grow Lights

For grow-light manufacturers, greenhouse-lighting engineers and OEM fixture developers, R6-V1K0B-500Z-2 fits specifications such as 1000W horticulture LED driver, dual-channel grow light driver, non-isolated LED power supply for top-grow lights, 0-10V dimmable horticulture driver and PWM dimmable high-power LED driver. The R6-V platform supports 2-in-1 dimming through 0-10V and PWM control and is designed for independent dimming of the two output channels.

The 1000W platform provides additional power headroom for large commercial grow-light fixtures and greenhouse top-lighting systems while retaining independent dual-channel control. The series also supports dynamic power allocation between channels, which can help fixture designers distribute available driver power according to the operating requirements of the LED loads. An optional aux-to-main power-shift function and optional 12V/250mA auxiliary power are identified for the R6-V platform.

Electrical Performance, Protection and Mechanical Options

The main electrical parameters for R6-V1K0B-500Z-2 include 1000W total output power, power factor of >0.95 and typical efficiency of 96.00%. The driver carries an IP65 enclosure rating and includes SCP, OCP and OTP protection. Surge protection is specified at DM 8kV / CM 8kV, supporting deployment in electrically demanding commercial horticulture installations.

Two mechanical formats are shown for this model family. The regular-type enclosure for R6-V1K0B-500Z-2 measures 412×90×49 mm, while the suspended-type version measures 393×113.7×51.3 mm. In the official model code, Z is the interface/auxiliary placeholder: the blank option is the standard configuration, while Type W identifies the RJ12 option. The model code therefore remains in its catalog form rather than being expanded into separate product pages for every interface configuration.

Relevant long-tail search terms include 1000W grow light driver, dual-channel horticulture LED power supply, IP65 LED driver for top-grow lights, high-power 0-10V PWM LED driver, non-isolated horticulture LED driver, dynamic power allocation LED driver and 200-480V AC grow light power supply.
