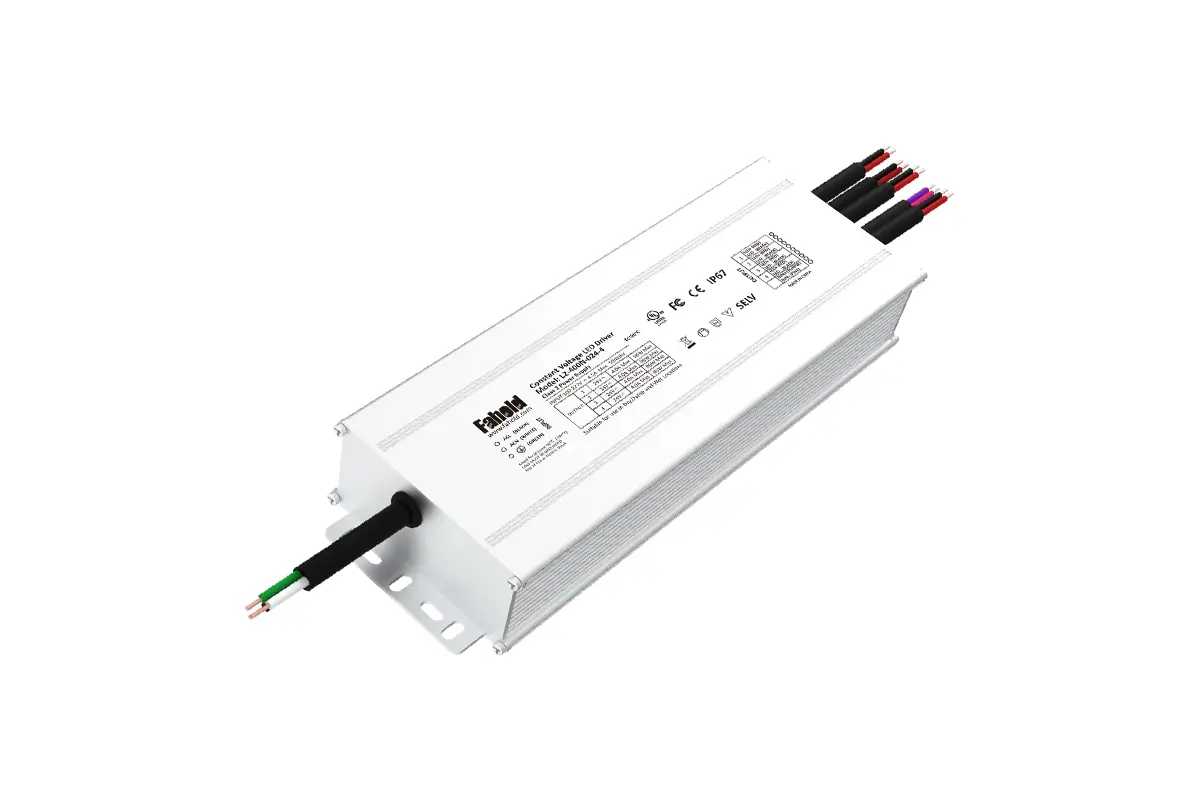

L2-300X-024-3 288W 24V Dimmable Class 2 LED Driver

L2-300B-024-3 is a 288W 24V constant-voltage LED driver from the FAHOLD L2 Series, developed for professional signage lighting and multi-channel Class 2 LED power systems. It accepts a wide 100-277Vac input and delivers a regulated 24Vdc / 3 × 4A output. The L2 platform is designed for LED signage projects that require high power factor, efficient constant-voltage conversion and a protected enclosed driver architecture.

288W 24V Class 2 LED Driver for Signage and LED Strip Lighting

For sign manufacturers, lighting engineers and project buyers, L2-300B-024-3 fits specifications calling for a 288W 24V LED driver, 100-277V AC to 24V DC LED power supply, Class 2 constant-voltage LED driver or a dimmable LED power supply for signage lighting. Type B models in the L2 Series support dimming and programming functions for projects where brightness control or application-specific output behavior is required.

This model targets larger commercial signage and multi-section LED installations that require higher output power and multiple controlled branches. The 3-channel output design allows the total load to be distributed across multiple LED branches, which is useful for large light boxes, billboards and multi-section signage systems. The 24V DC architecture is useful for longer LED strip runs and larger signage systems because it can reduce operating current compared with an equivalent 12V load.

Electrical and Project Selection Considerations

The main specification points for L2-300B-024-3 include a maximum output of 288W, 24V constant-voltage operation, 3 × 4A output capacity, power factor of >0.95 and typical efficiency of 94%. The enclosure size is 295×72×32 mm. Built-in protection for the L2 platform includes SCP, OVP, OTP and OLP, supporting reliable operation in demanding signage and commercial LED installations.

Typical long-tail searches relevant to this product include 288W 24V LED driver for signage, multi-channel LED driver, Class 2 LED power supply, constant-voltage driver for LED strip lights, LED driver for light boxes and billboards and 100-277Vac signage LED power supply. FAHOLD specifies a 5-7 years warranty warranty range for the L2 Series.
