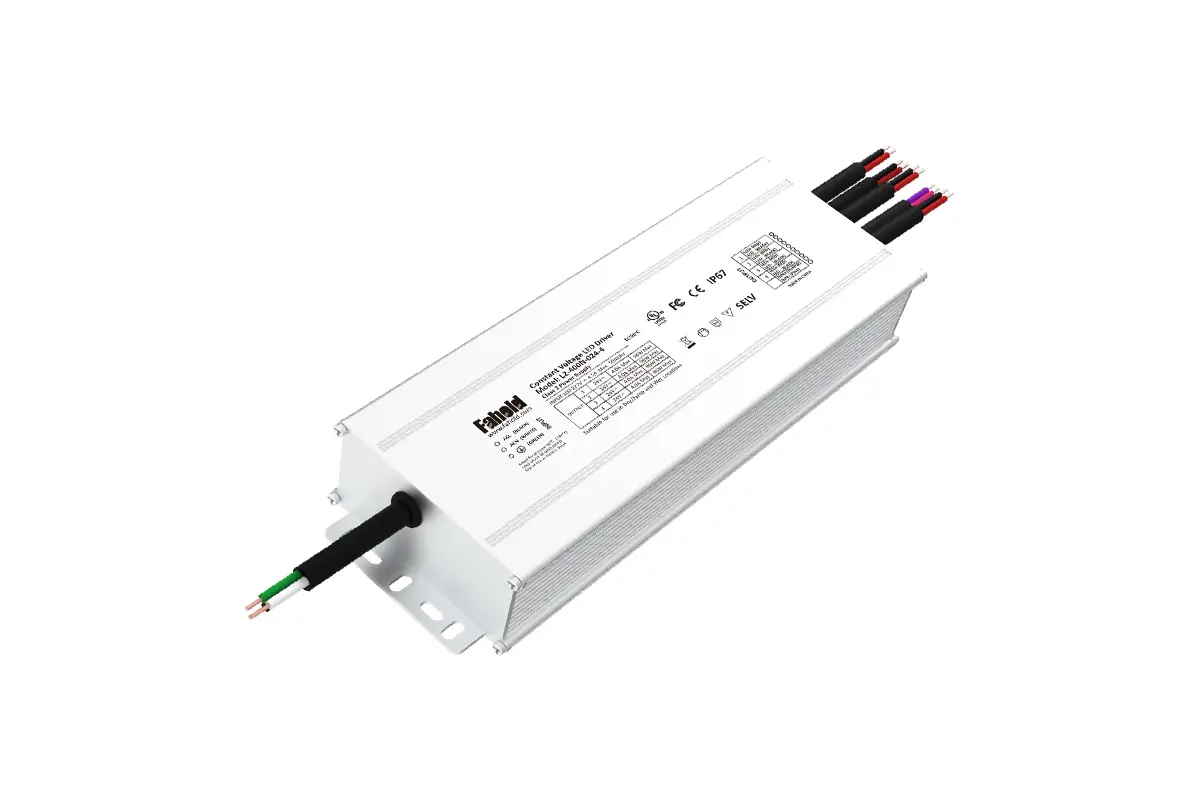

L2-120X-012-2 120W 12V Dimmable Class 2 LED Driver

L2-120B-012-2 is a 120W 12V constant-voltage LED driver from the FAHOLD L2 Series, developed for professional signage lighting and multi-channel Class 2 LED power systems. It accepts a wide 100-277Vac input and delivers a regulated 12Vdc / 2 × 5A output. The L2 platform is designed for LED signage projects that require high power factor, efficient constant-voltage conversion and a protected enclosed driver architecture.

120W 12V Class 2 LED Driver for Signage and LED Strip Lighting

For sign manufacturers, lighting engineers and project buyers, L2-120B-012-2 fits specifications calling for a 120W 12V LED driver, 100-277V AC to 12V DC LED power supply, Class 2 constant-voltage LED driver or a dimmable LED power supply for signage lighting. Type B models in the L2 Series support dimming and programming functions for projects where brightness control or application-specific output behavior is required.

This power range is well suited to medium-size signage, channel letters, LED light boxes and linear LED systems. The 2-channel output design allows the total load to be distributed across multiple LED branches, which is useful for large light boxes, billboards and multi-section signage systems. The 12V DC architecture is commonly used with low-voltage LED modules, LED strips and illuminated signage components.

Electrical and Project Selection Considerations

The main specification points for L2-120B-012-2 include a maximum output of 120W, 12V constant-voltage operation, 2 × 5A output capacity, power factor of >0.95 and typical efficiency of 91%. The enclosure size is 173×72×32 mm. Built-in protection for the L2 platform includes SCP, OVP, OTP and OLP, supporting reliable operation in demanding signage and commercial LED installations.

Typical long-tail searches relevant to this product include 120W 12V LED driver for signage, multi-channel LED driver, Class 2 LED power supply, constant-voltage driver for LED strip lights, LED driver for light boxes and billboards and 100-277Vac signage LED power supply. FAHOLD specifies a 5-7 years warranty warranty range for the L2 Series.
