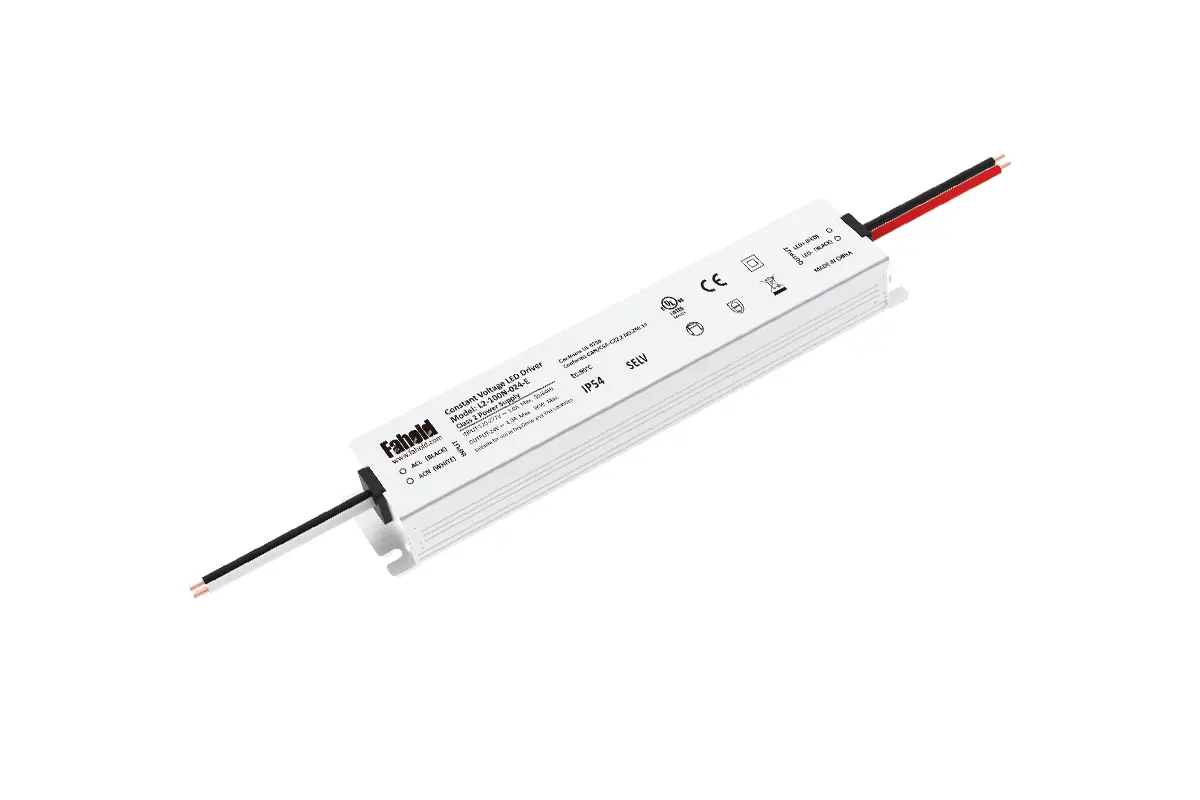

L2-036N-012-E 36W 12V Slim Constant Voltage LED Driver

L2-036N-012-E is a 36W 12V slim constant-voltage LED driver from the FAHOLD L2-E Series. It is designed for LED signage, LED strip and cabinet-lighting applications where enclosure width and installation space are important design constraints. The driver accepts 120-277Vac and provides a regulated 12Vdc / 3.00A single output with a non-dimmable constant-voltage architecture.

36W 12V Slim Constant Voltage LED Driver

For sign manufacturers, lighting engineers, cabinet-lighting suppliers and OEM buyers, L2-036N-012-E fits specifications such as 36W 12V LED driver, 120-277V AC to 12V DC power supply, slim LED strip power supply and compact constant-voltage LED driver. The narrow L2-E housing is intended for installations where conventional enclosed drivers may be too wide or bulky, including sign boxes, cabinet channels and linear LED assemblies.

This compact power range is well suited to short LED strip runs, illuminated letters, cabinet lighting, display lighting and other low-load applications where driver space is limited. Its 12V DC output is appropriate for common low-voltage LED strips, signage modules and cabinet-lighting products designed around a regulated 12V constant-voltage source.

Electrical and Installation Considerations

The key electrical parameters for L2-036N-012-E are a maximum output of 36W, 12V constant-voltage output, 3.00A output current, power factor of >0.95 and typical efficiency of 87.00%. The enclosure measures 124.4×23×20 mm. The L2-E platform includes OCP, OVP, SCP and OTP protection functions and is offered with IP65 / IP67 protection options for dry, damp or wet-location lighting projects. This model falls within the L2-E products specified in the catalog as meeting UL Class 2 requirements.

Relevant long-tail search terms for this model include 36W 12V constant voltage LED driver, slim LED driver for signage, LED power supply for cabinet lighting, non-dimmable LED strip driver, IP65 IP67 LED power supply and compact 12V LED driver. FAHOLD specifies a 5 years warranty for the L2-E Series.
