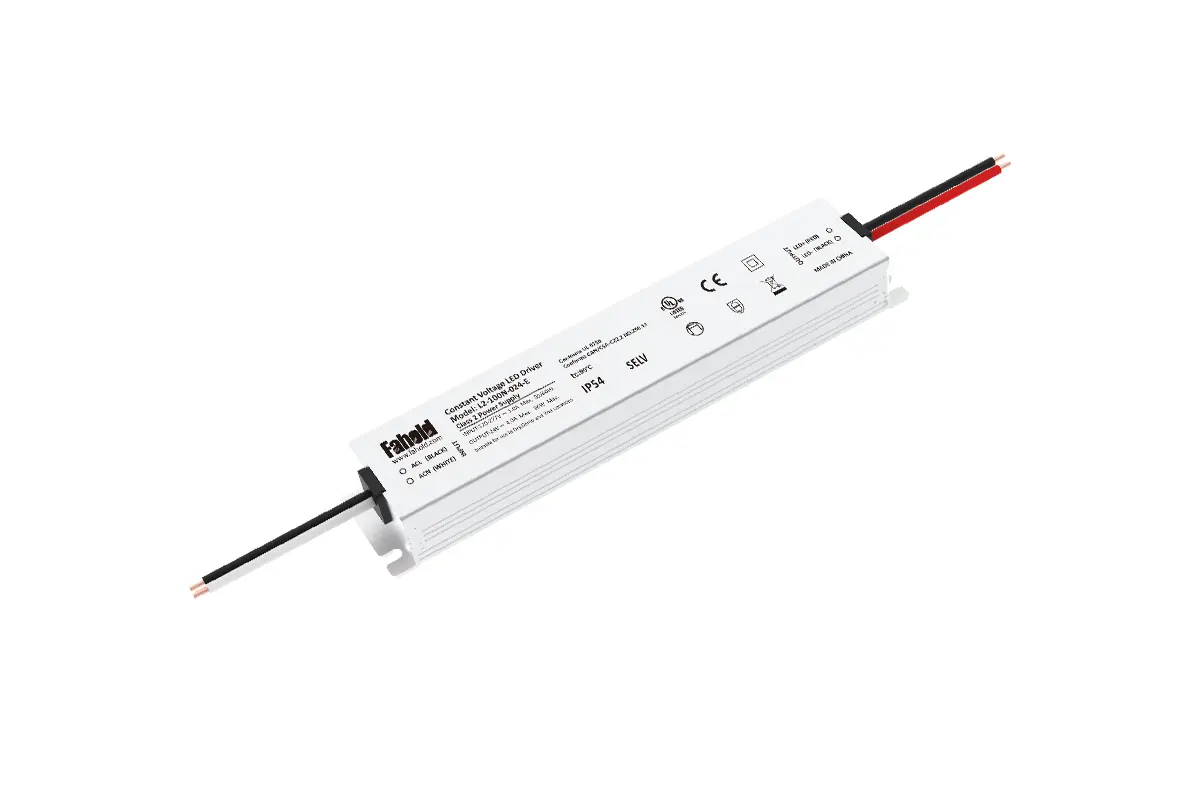

L2-150N-012-E 150W 12V Slim Constant Voltage LED Driver

L2-150N-012-E is a 150W 12V slim constant-voltage LED driver from the FAHOLD L2-E Series. It is designed for LED signage, LED strip and cabinet-lighting applications where enclosure width and installation space are important design constraints. The driver accepts 120-277Vac and provides a regulated 12Vdc / 12.50A single output with a non-dimmable constant-voltage architecture.

150W 12V Slim Constant Voltage LED Driver

For sign manufacturers, lighting engineers, cabinet-lighting suppliers and OEM buyers, L2-150N-012-E fits specifications such as 150W 12V LED driver, 120-277V AC to 12V DC power supply, slim LED strip power supply and compact constant-voltage LED driver. The narrow L2-E housing is intended for installations where conventional enclosed drivers may be too wide or bulky, including sign boxes, cabinet channels and linear LED assemblies.

The 150W version is intended for higher-load LED strip and signage installations that still benefit from a slim, single-output constant-voltage driver format. Its 12V DC output is appropriate for common low-voltage LED strips, signage modules and cabinet-lighting products designed around a regulated 12V constant-voltage source.

Electrical and Installation Considerations

The key electrical parameters for L2-150N-012-E are a maximum output of 150W, 12V constant-voltage output, 12.50A output current, power factor of >0.95 and typical efficiency of 92.00%. The enclosure measures 198×33×20 mm. The L2-E platform includes OCP, OVP, SCP and OTP protection functions and is offered with IP65 / IP67 protection options for dry, damp or wet-location lighting projects. For this higher-power model, project engineers should verify the applicable Class 2 requirement against the final project specification.

Relevant long-tail search terms for this model include 150W 12V constant voltage LED driver, slim LED driver for signage, LED power supply for cabinet lighting, non-dimmable LED strip driver, IP65 IP67 LED power supply and compact 12V LED driver. FAHOLD specifies a 5 years warranty for the L2-E Series.
