H2E 200–277Vac Grow Light LED Driver
High-power isolated and programmable LED driver for commercial grow-light and horticulture fixtures, with 200–277Vac rated input, 42–62V output platforms, 3-in-1 dimming and no-afterglow shutdown.
200–277Vac High-Power LED Driver for Grow Lighting
The FAHOLD H2E Series is the 200–277Vac branch of the H2 single-channel grow-light driver platform. It is designed for professional horticulture fixtures that require high output power from a dedicated isolated channel. Current H2E models cover 800W, 1000W, 1200W, 1300W and 1500W power classes.
H2E uses 42–56V and 42–62V output platforms, with high-current configurations reaching up to 31A on the 1500W model. The series supports offline programming, adaptive output voltage, 0–10V / PWM / Rx 3-in-1 dimming and dim-to-off without afterglow. Optional configurations include RJ12 plus knob dimmer or 12Vdc auxiliary output, while DM 6kV / CM 10kV surge protection and SCP / OVP / OTP functions support demanding commercial grow-light installations.
For grow-light manufacturers, greenhouse-lighting engineers and OEM fixture teams, contact FAHOLD for H2E model matching, samples and project-specific configuration support. For the broader 120–277Vac and 200–277Vac single-channel family, review the H2 Single-Channel Series.
200–277Vac Grow Light Driver Features
200–277Vac Rated Input Platform
Dedicated 200–277Vac platform for high-power commercial grow-light and horticulture fixtures.
Isolated High-Power Design
Isolated architecture supports high-power professional grow-light applications from 800W to 1500W.
Offline Programmable Output
Output parameters can be configured offline to match different LED-board current and fixture-power requirements.
0–10V / PWM / Rx 3-in-1 Dimming
Supports 0–10V, PWM and Rx dimming together with dim-to-off operation and no afterglow.
RJ12, Knob & 12V AUX Options
Optional RJ12 plus knob dimmer or 12Vdc auxiliary-output configurations support different fixture-control requirements.
DM 6kV / CM 10kV Surge Protection
Differential-mode 6kV and common-mode 10kV surge protection combine with SCP, OVP and OTP protection functions.
200–277Vac Commercial Grow Light Applications
H2E models are designed for commercial grow lights, greenhouse fixtures and controlled-environment horticulture systems that use 200–277Vac input and require a high-power isolated output channel.
Commercial Grow & Greenhouse Lighting
H2E Certifications & Safety
Latest H2-family catalog data identifies UL/cUL, CE, Class P and IP65 as the principal compliance and enclosure classifications. Confirm the applicable listing for the selected model.
H2E 200–277Vac Grow Light LED Driver Models
Compare 800W–1500W H2E models by 200–277Vac rated input, 42–56V / 42–62V output platform, output current, maximum power, power factor, efficiency and dimensions.
| Model No | Rated Input Voltage | Output Voltage | Output Current | Max.Power | Typ.PF | Typ.Eff. | (L*W*H)mm |
|---|---|---|---|---|---|---|---|
| H2E-800Y-056Z | 200-277Vac | 42-56V | 7.5-16.7A | 800W | >0.95 | 94.00% | 318*89*45 |
| H2E-1K0Y-056Z | 200-277Vac | 42-56V | 10.0-21.0A | 1000W | >0.95 | 94.00% | 380*89*45 |
| H2E-1K2Y-056Z | 200-277Vac | 42-56V | 13.0-26.0A | 1200W | >0.95 | 95.00% | 478*89*45 |
| H2E-1K3Y-056Z | 200-277Vac | 42-56V | 13.0-26.0A | 1300W | >0.95 | 95.00% | 478*89*45 |
| H2E-1K5Y-062Z | 200-277Vac | 42-62V | 14.0-31.0A | 1500W | >0.95 | 95.00% | 488*90*49 |
Dimming & Model Configuration

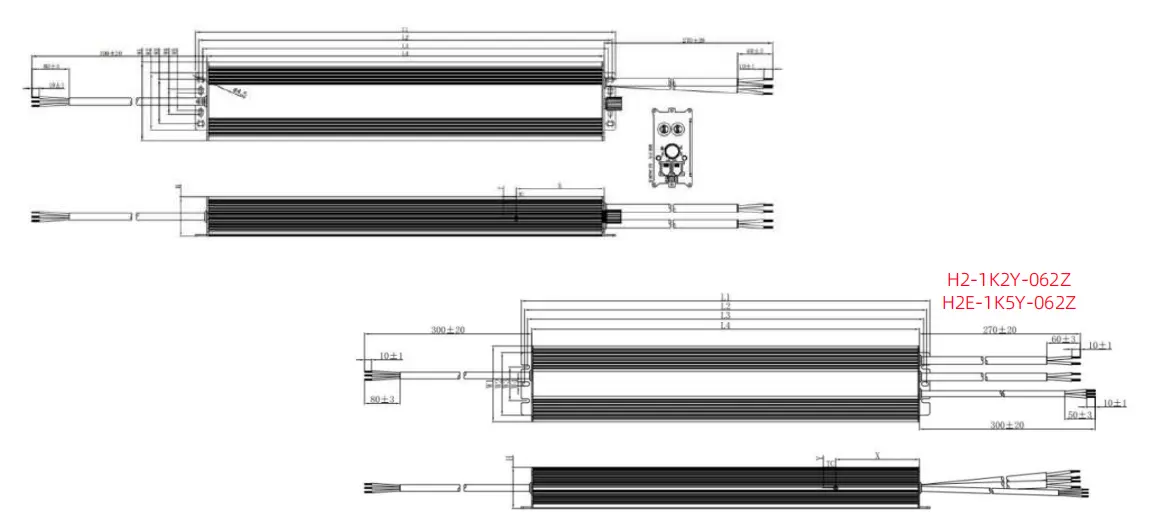

H2E LED Driver Dimensions
| H2E-800Y-056Z | 318 | 310.5 | 301.5 | 292 | 89 | 65 | 50 | 29 | 20 | 45 |
|---|---|---|---|---|---|---|---|---|---|---|
| H2E-1KOY-056Z | 380 | 372.5 | 363.5 | 354 | 89 | 65 | 50 | 29 | 20 | 45 |
| H2E-1K2Y-056Z | 478 | 470.5 | 461.5 | 452 | 89 | 65 | 50 | 29 | 20 | 45 |
| H2E-1K3Y-056Z | 478 | 470.5 | 461.5 | 452 | 89 | 65 | 50 | 29 | 20 | 45 |
| H2E-1K5Y-062Z | 488 | 480 | 473 | 463 | 90 | 74.5 | 40 | 5 | / | 49 |
