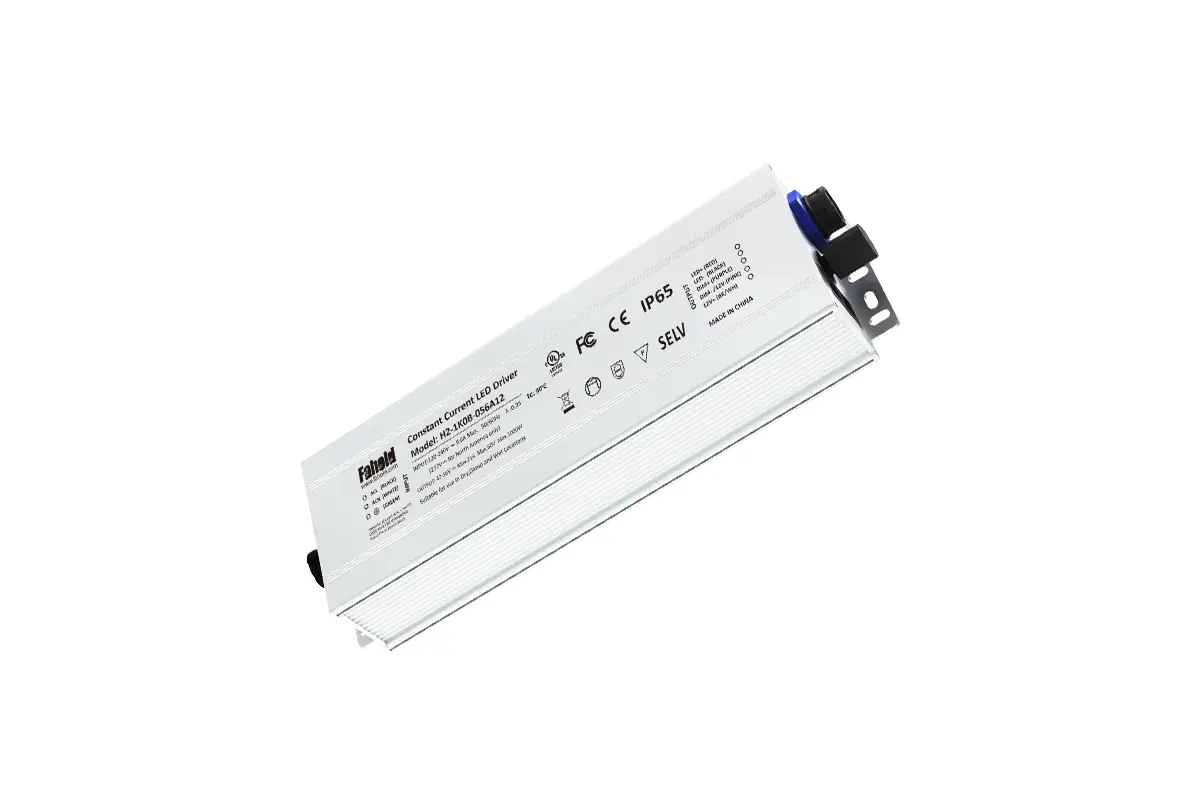

H2E-1K5Y-062Z 1500W 42-62V Horticulture LED Driver

H2E-1K5Y-062Z is an isolated single-channel LED driver from the FAHOLD H2 Series, developed specifically for professional horticulture lighting and controlled-environment agriculture fixtures. It operates from a rated 200-277Vac input and provides an adaptive 42-62V output range with 14.0-31.0A output-current capability. The H2 platform combines high power density, high conversion efficiency, off-line programming and industrial protection features for long-duration plant-lighting operation.

1500W Single-Channel Horticulture LED Driver with 42-62V Output

For grow-light manufacturers, greenhouse-lighting engineers and OEM fixture developers, H2E-1K5Y-062Z fits specifications such as 1500W horticulture LED driver, 200-277V AC grow light power supply, isolated single-channel LED driver, programmable horticulture LED power supply and high-power LED driver for greenhouse lighting. Its single-channel architecture is appropriate for fixtures that require one controlled high-current output rather than multiple independent output channels.

This ultra-high-power configuration is designed for large professional horticulture fixtures and centralized plant-lighting systems where maximum output capability and stable single-channel operation are key design requirements. The 42-62V adaptive output range gives fixture designers a wider voltage window for high-power LED arrays while retaining single-channel current control.

Control Options and Electrical Performance

In the official H2 model code, Y is the dimming-option placeholder: Type B provides 3-in-1 dimming through 0-10V, PWM and Rx control, while the blank Y option is non-dimmable. Z is the interface/auxiliary placeholder: Type W provides RJ12 and knob-dimmer functionality, while Type A12 provides a 12V DC auxiliary output. Keeping Y and Z in the model name allows the product family to represent the available factory configurations without creating a separate catalog product page for every option combination.

The main electrical parameters for H2E-1K5Y-062Z include 1500W maximum output, 42-62V adaptive output voltage, 14.0-31.0A output-current range, power factor of >0.95 and typical efficiency of 95.00%. The enclosure measures 488×90×49 mm. The H2 Series uses an isolated design, carries an IP65 enclosure rating, supports off-line programming, and includes SCP, OVP and OTP protection. Surge protection is specified at DM 6kV / CM 10kV.

Relevant search terms for this model include 1500W grow light driver, 1500W horticulture LED driver, single-channel LED driver for grow lights, IP65 programmable LED driver, 0-10V PWM Rx horticulture driver, high-current LED power supply for greenhouse lighting and 200-277V AC isolated LED driver. FAHOLD specifies a 5 years warranty for the H2 Series.
