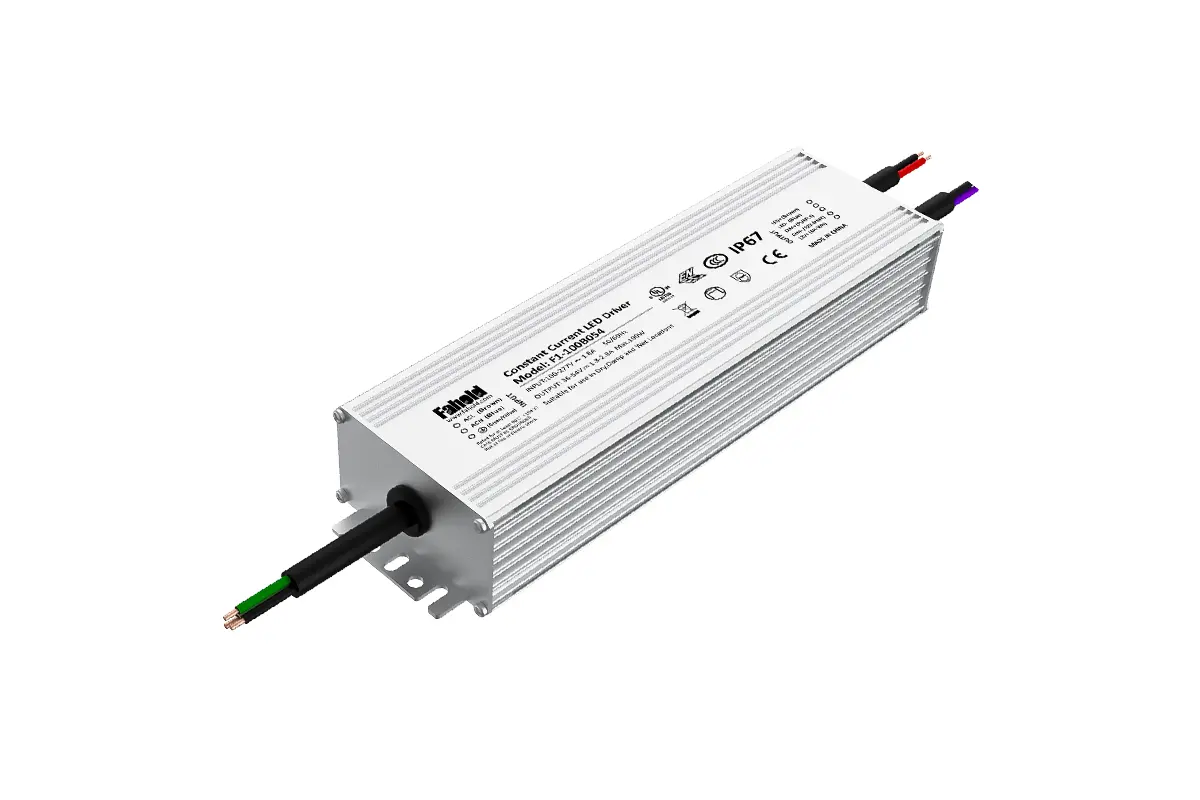

T1-060B-085 60W 54-85V Outdoor LED Driver

T1-060B-085 is a compact 60W outdoor LED driver from the FAHOLD T1 Series, developed for professional street lighting, tunnel lighting, display lighting and other outdoor LED applications. It operates from 100-277Vac input and provides a 54-85V output-voltage range with a full-power output-current range of 0.30-1.10A. The compact T1 platform extends the F1 family into lower-power applications where installation space and current flexibility are important.

60W 54-85V Outdoor LED Driver for Compact Lighting Fixtures

For luminaire manufacturers and lighting engineers, T1-060B-085 is relevant to specifications such as 60W outdoor LED driver, 100-277V LED power supply, 0-10V dimmable LED driver, compact street light driver, tunnel lighting power supply and IP67 outdoor LED driver. The 60W platform is suitable for compact roadway, tunnel, display and grow-light fixtures where a flexible output-current range and multiple control options are useful.

Dimming and Control Options

This specific model uses the fixed Type B control version, supporting dimming with off-line programming. Type B is dimmable and supports off-line programming, Type V is non-dimmable with potentiometer adjustment, and Type D is DALI dimmable. The product family also supports 0-10V, PWM, resistor and timer-dimming functions according to the selected configuration.

Electrical Performance and Protection

The principal parameters for T1-060B-085 include 60W rated power, 54-85V output voltage, 0.30-1.10A current range, power factor of >0.95 and typical efficiency of 88.00%. The enclosure measures 108.5×62×32 mm. The series uses IP65 / IP67 outdoor protection and includes SCP, OVP and OTP protection. Surge protection is specified at DM 6kV / CM 10kV.

Relevant long-tail search terms include 60W 0-10V LED driver, 60W compact outdoor LED driver, 54-85V LED power supply, programmable street lighting driver, IP65 IP67 tunnel light driver and 100-277V constant-current LED driver. FAHOLD specifies a 5+ years warranty.
