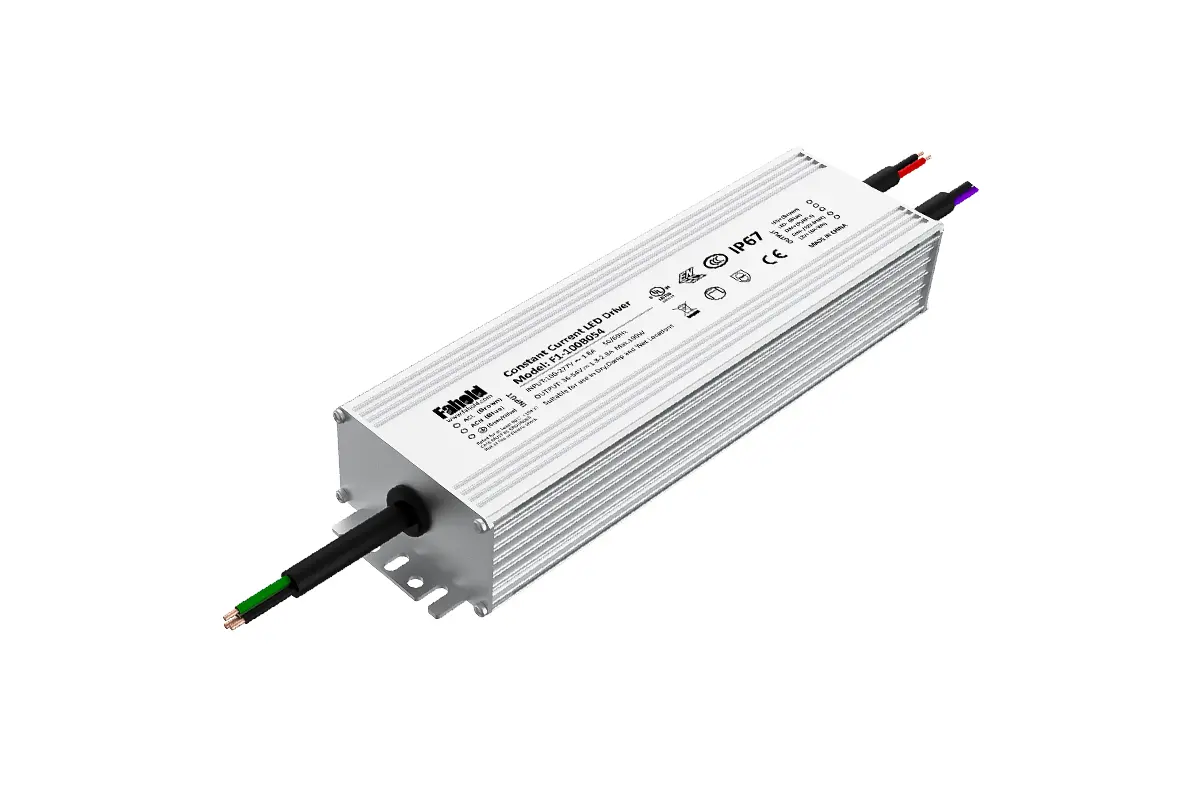

F1E-200X-286 200W 140-286V Outdoor LED Driver

F1E-200X-286 is a 200W outdoor LED driver from the FAHOLD F1E Series, developed for professional street lighting, tunnel lighting, stadium lighting and horticulture lighting in European-market applications. It operates from a rated 200-277Vac input and provides a 140-286V output-voltage window with a full-power output-current range of 0.70-1.05A. The F1E platform combines high power factor, off-line programmability and outdoor-grade enclosure protection in a compact driver format.

200W 140-286V Outdoor LED Driver for European Lighting Projects

For luminaire manufacturers, lighting engineers and OEM project teams, F1E-200X-286 fits specifications such as 200W outdoor LED driver, 200-277V LED power supply, 0-10V programmable LED driver, street light driver for the European market, tunnel lighting LED driver and IP67 outdoor LED power supply.

This higher-output range supports commercial street, tunnel and stadium luminaires where off-line programming, high-voltage LED strings and robust surge protection are required. The 140-286V output window supports series-connected LED loads within the model's rated current range, allowing luminaire designers to match the driver to different LED board and string configurations.

Control and Programming Options

In the official F1E model code, X identifies the control configuration. Type N is non-dimmable; Type V is non-dimmable with potentiometer adjustment; and Type B supports dimming with off-line programming. The series also supports 0-10V, PWM, resistor and timer-dimming functions depending on the selected configuration, while output current can be programmed to match the LED load and luminaire design.

Electrical Performance and Outdoor Protection

The main specifications for F1E-200X-286 include 200W rated power, 140-286V output voltage, 0.70-1.05A current range, power factor of >0.97 and typical efficiency of 94.0%. The enclosure measures 180×62×36 mm. The F1E Series is listed with IP65 / IP67 protection and includes SCP, OVP and OTP protection. Surge protection is specified at DM 6kV / CM 10kV.

Relevant long-tail search terms include 200W 0-10V LED driver, 200W street light driver, European outdoor LED driver, programmable tunnel light driver, IP65 IP67 LED power supply, 140-286V constant-current LED driver and 200-277V stadium lighting driver. FAHOLD specifies a 5+ years warranty.
