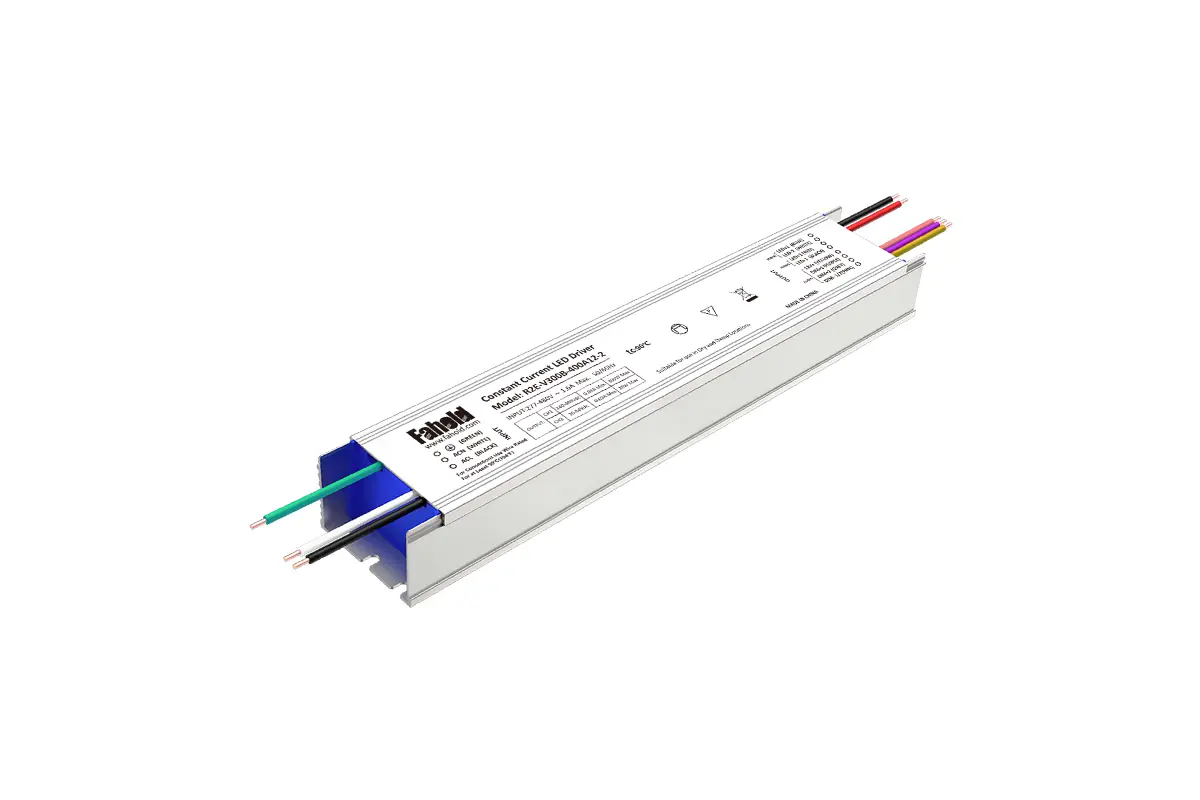

R2E-V150B-260Z-2 150W Dual-Channel Horticulture LED Driver

R2E-V150B-260Z-2 is a dual-channel non-isolated LED driver from the FAHOLD R2E-V platform, developed for professional horticulture inter-lighting and under-canopy supplemental lighting. It operates from a rated 277-480Vac input and combines two independently controlled outputs in an ultra-narrow enclosure. Channel 1 is rated at 150-280Vdc / 0.37-0.75A with up to 150W, while Channel 2 provides 30-54Vdc / 0.25-0.50A with up to 15W.

150W Dual-Channel LED Driver for Inter-lighting and Under-canopy Grow Lights

For horticulture fixture manufacturers, greenhouse-lighting engineers and OEM suppliers, R2E-V150B-260Z-2 fits specifications such as 150W horticulture LED driver, dual-channel inter-lighting driver, under-canopy grow light power supply, 0-10V dimmable horticulture driver and PWM dimmable dual-output LED driver. Its narrow mechanical format is particularly useful in space-constrained fixtures where the driver must fit close to the crop canopy or inside slim inter-lighting assemblies.

This power class is suited to compact under-canopy fixtures, inter-lighting bars and supplemental grow-lighting systems where a narrow driver body and two independently controlled outputs are valuable. The independent dual-channel architecture supports separate control of the primary and secondary LED loads, while dynamic power allocation and optional aux-to-main power-shift functionality allow the driver platform to be adapted to different fixture power strategies.

Control, Electrical Performance and Protection

This model uses the Type B control configuration with 0-10V and PWM dimming; timer dimming is also identified as an optional function for the series. In the official model code, Z is the auxiliary-output placeholder: the blank configuration is standard, while A12 identifies the optional 12V DC auxiliary output. The driver has a power factor of >0.96 and typical efficiency of 94.00%.

The enclosure dimension shown for R2E-V150B-260Z-2 is 390×44×32 mm. The series includes SCP, OCP and OTP protection, with surge protection specified at DM 8kV / CM 8kV. Standard protection is listed as IP42, with an IP67 option available for applications that require a higher enclosure protection level.

Relevant long-tail search terms include dual-channel LED driver for under-canopy lighting, horticulture inter-lighting power supply, 150W grow light driver, high-voltage LED driver for greenhouse lighting, 0-10V PWM horticulture LED driver, ultra-narrow grow light driver and 277-480V AC LED power supply. FAHOLD specifies a 5+ years warranty.
