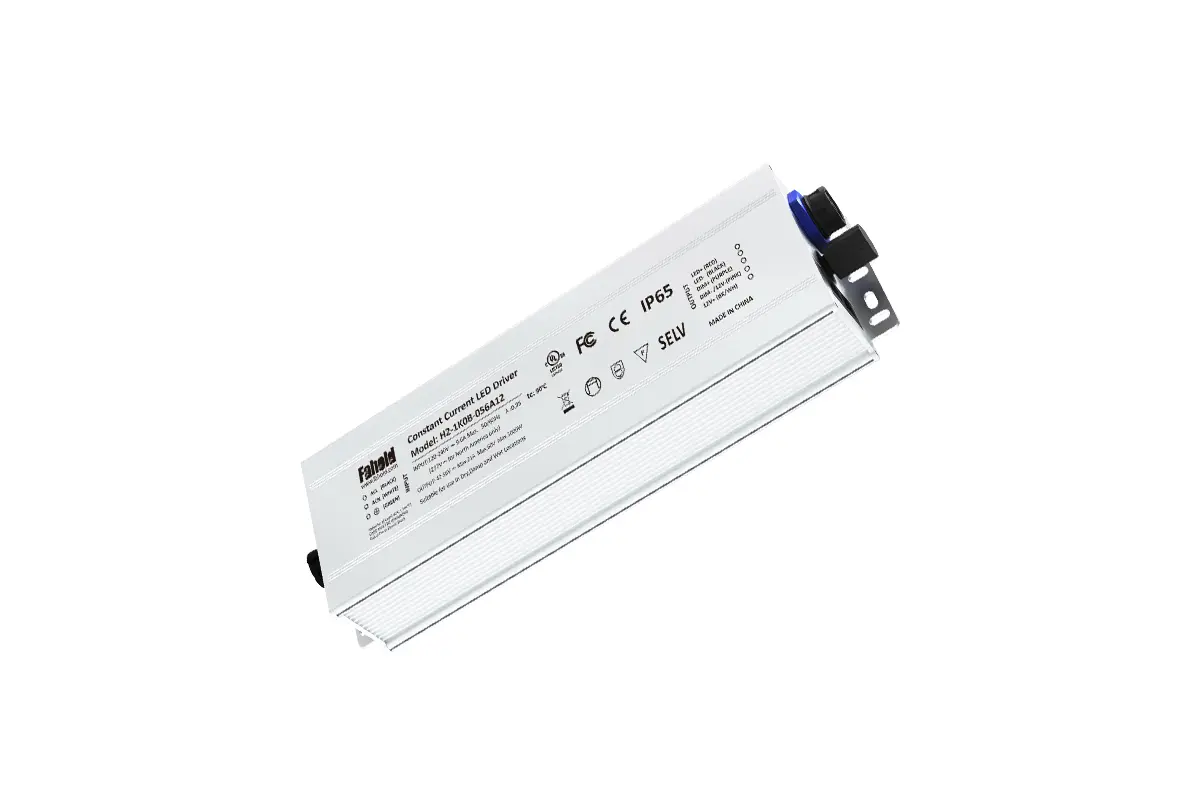

H2-1K2Y-062Z 1200W 42-62V Horticulture LED Driver

H2-1K2Y-062Z is an isolated single-channel LED driver from the FAHOLD H2 Series, developed specifically for professional horticulture lighting and controlled-environment agriculture fixtures. It operates from a rated 120-277Vac input and provides an adaptive 42-62V output range with 12.0-24.0A output-current capability. The H2 platform combines high power density, high conversion efficiency, off-line programming and industrial protection features for long-duration plant-lighting operation.

1200W Single-Channel Horticulture LED Driver with 42-62V Output

For grow-light manufacturers, greenhouse-lighting engineers and OEM fixture developers, H2-1K2Y-062Z fits specifications such as 1200W horticulture LED driver, 120-277V AC grow light power supply, isolated single-channel LED driver, programmable horticulture LED power supply and high-power LED driver for greenhouse lighting. Its single-channel architecture is appropriate for fixtures that require one controlled high-current output rather than multiple independent output channels.

The 1200W configuration provides additional power headroom for large-format grow lights and industrial plant-lighting systems with demanding LED load requirements. The 42-62V adaptive output range gives fixture designers a wider voltage window for high-power LED arrays while retaining single-channel current control.

Control Options and Electrical Performance

In the official H2 model code, Y is the dimming-option placeholder: Type B provides 3-in-1 dimming through 0-10V, PWM and Rx control, while the blank Y option is non-dimmable. Z is the interface/auxiliary placeholder: Type W provides RJ12 and knob-dimmer functionality, while Type A12 provides a 12V DC auxiliary output. Keeping Y and Z in the model name allows the product family to represent the available factory configurations without creating a separate catalog product page for every option combination.

The main electrical parameters for H2-1K2Y-062Z include 1200W maximum output, 42-62V adaptive output voltage, 12.0-24.0A output-current range, power factor of >0.95 and typical efficiency of 95.00%. The enclosure measures 488×90×49 mm. The H2 Series uses an isolated design, carries an IP65 enclosure rating, supports off-line programming, and includes SCP, OVP and OTP protection. Surge protection is specified at DM 6kV / CM 10kV.
