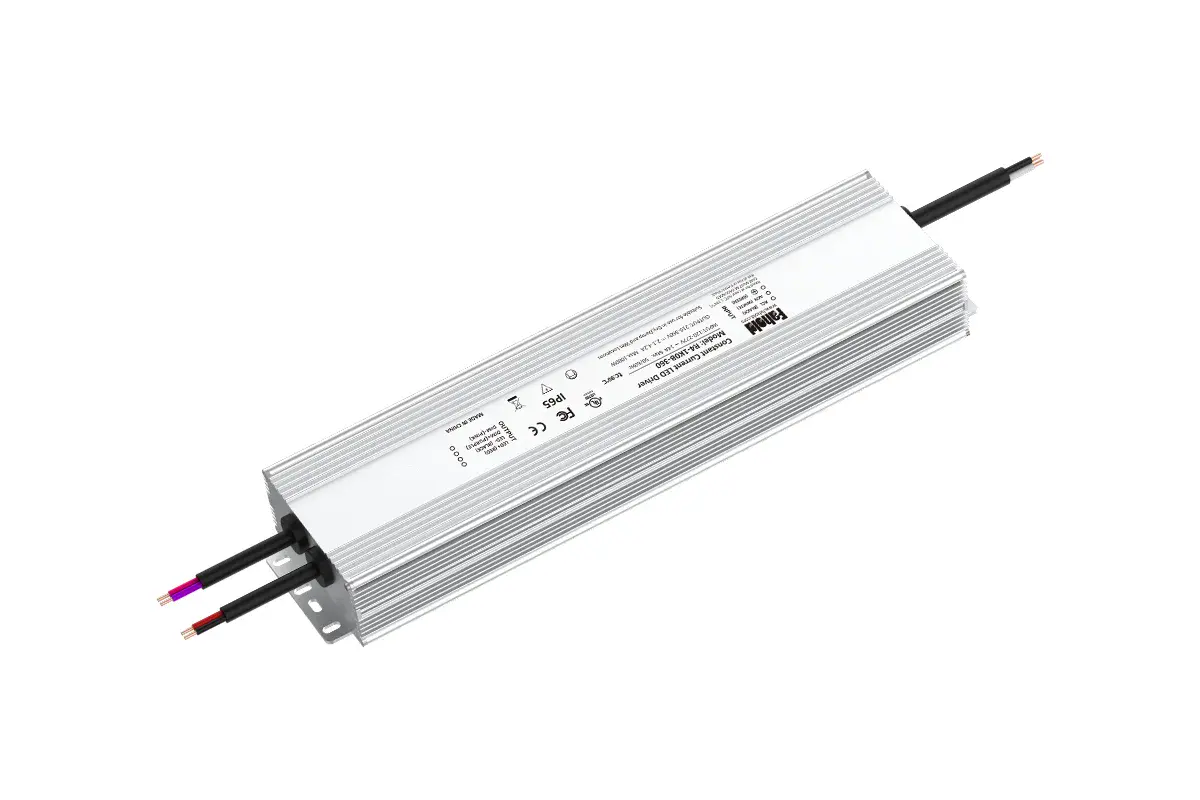

R4-1K0Y-360Z 1000W Programmable Horticulture LED Driver

R4-1K0Y-360Z is a 1000W non-isolated programmable LED driver from the FAHOLD R4 Series, developed for professional horticulture lighting, greenhouse luminaires, stadium lighting and sports-lighting fixtures. It operates from a rated 120-277Vac input and provides a 210-360Vdc output range with a full-power output-current range of 2.10-4.20A. The R4 platform combines high power density, high efficiency and off-line programmability in a slim linear enclosure.

1000W Programmable LED Driver for Horticulture and Stadium Lighting

For grow-light manufacturers, lighting engineers and OEM fixture developers, R4-1K0Y-360Z fits specifications such as 1000W horticulture LED driver, 1000W stadium light driver, non-isolated high-voltage LED driver, programmable grow light power supply and 120-277V AC LED driver. Its 210-360Vdc output window is designed for high-voltage LED strings commonly used in commercial horticulture and sports-lighting fixtures.

The 1000W platform is intended for very high-output grow-light and stadium-lighting systems where power density and off-line programmability are key design requirements. The slim mechanical format helps simplify integration into high-power luminaires where available driver space is limited, while the high-voltage output reduces the current required for a given power level compared with lower-voltage LED architectures.

Dimming, Programming and Electrical Performance

In the official R4 model code, Y is the control-option placeholder: Type B supports dimming with programming, while Type N is non-dimmable. The series supports 3-in-1 dimming through 0-10V, PWM and resistor control, together with dim-to-off and soft-start functions. Z is the auxiliary/interface placeholder: Blank indicates no auxiliary output, A12 identifies the 12V auxiliary-output option, and W identifies the optional RJ12 and knob-dimmer configuration.

The main electrical parameters for R4-1K0Y-360Z include 1000W rated power, 210-360Vdc output voltage, 2.10-4.20A full-power output current, power factor of >0.95 and typical efficiency of 97.0%. The enclosure measures 353×89×45 mm. The R4 Series carries an IP65 enclosure rating and includes SCP, OVP and OTP protection.

Relevant long-tail search terms include 1000W grow light driver, high-voltage horticulture LED driver, 0-10V PWM programmable LED driver, IP65 stadium lighting power supply, non-isolated LED driver for greenhouse lighting, 210-360V LED driver and high-efficiency sports lighting LED power supply. FAHOLD specifies a 5+ years warranty.
