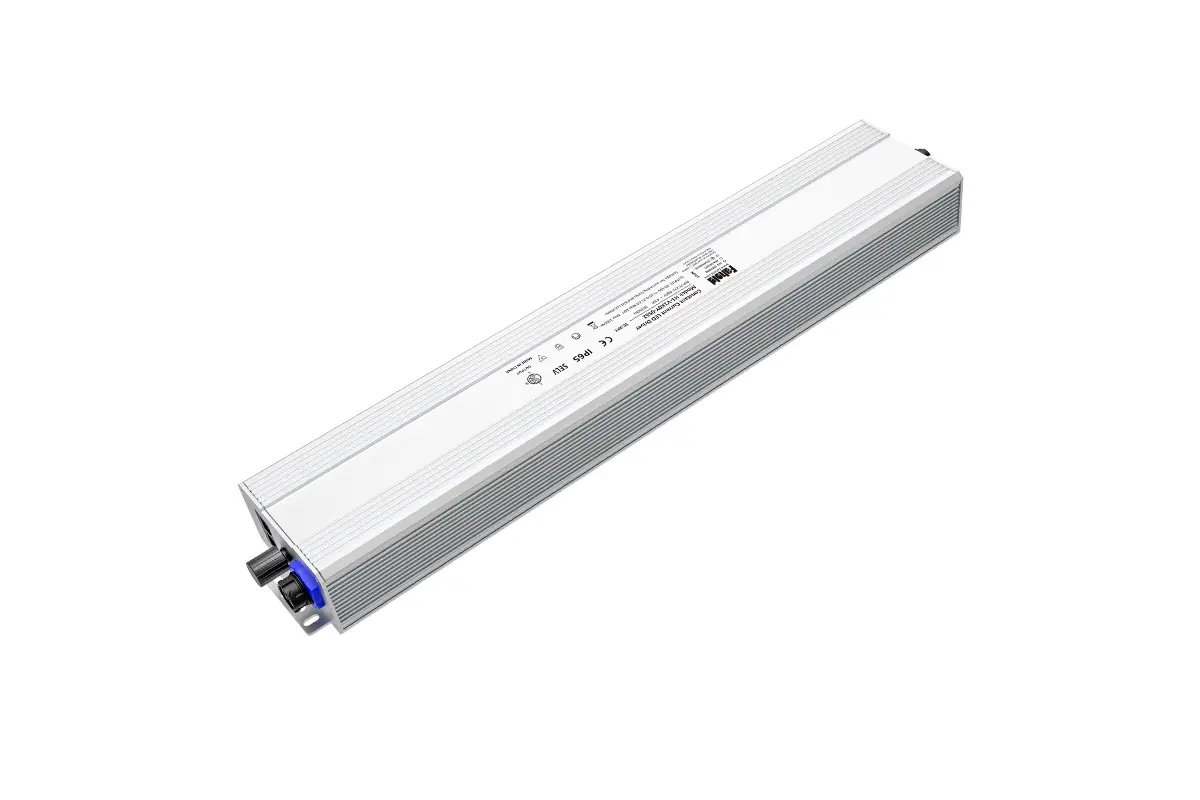

H1-V1K0Y-149Z 1000W 84-149V Isolated Horticulture LED Driver

H1-V1K0Y-149Z is a 1000W isolated programmable LED driver from the FAHOLD H1-V Series, engineered for high-power horticulture lighting, greenhouse luminaires, stadium lighting and professional sports-lighting fixtures. It operates from a rated 200-480Vac input and provides an adaptive 84-149V output range with 6.7-8.4A output-current capability. The H1-V platform combines high conversion efficiency, programmable output control and an isolated industrial power architecture for demanding commercial LED fixtures.

1000W Programmable Horticulture LED Driver with 84-149V Output

For grow-light manufacturers, lighting engineers and OEM fixture designers, H1-V1K0Y-149Z fits specifications such as 1000W horticulture LED driver, 200-480V AC LED power supply, programmable grow light driver, isolated high-power LED driver and 0-10V dimmable LED driver for horticulture lighting. In the H1-V model code, Y is the control-option placeholder: Type B supports off-line programming and 3-in-1 dimming through 0-10V, PWM and Rx control, while Type N is non-dimmable. This lets fixture manufacturers select the control configuration required by the project.

The 1000W class is suitable for very high-output horticulture and sports-lighting systems, including centralized or large-format LED fixtures that need a robust industrial driver platform. The 84-149V output window provides a balanced voltage/current operating range for medium-to-high voltage LED strings, supporting efficient fixture layouts while keeping output current at a manageable level.

Electrical Performance and Fixture Integration

The main electrical parameters for H1-V1K0Y-149Z include 1000W maximum output, 84-149V adaptive output voltage, 6.7-8.4A output-current range, power factor of >0.95 and typical efficiency of 96.00%. The enclosure measures 500×89×45 mm. The H1-V Series uses an isolated design, carries an IP65 enclosure rating and includes SCP, OVP and OTP protection. Surge protection is specified at DM 6kV / CM 10kV, supporting installation in electrically demanding horticulture and sports-lighting environments.

From a fixture-design perspective, the programmable H1-V platform is relevant when engineers need a high-efficiency LED driver for grow lights, Class P LED driver, multi-channel horticulture lighting power supply, high voltage LED driver for stadium lighting or a 1000W isolated LED power supply with 0-10V dimming. In the model code, Z is the auxiliary/interface placeholder: Blank indicates no auxiliary output, A12 indicates a 12V auxiliary output, and W indicates the optional RJ12 and dimming-knob configuration. FAHOLD specifies a 5 years warranty for the H1-V Series.
